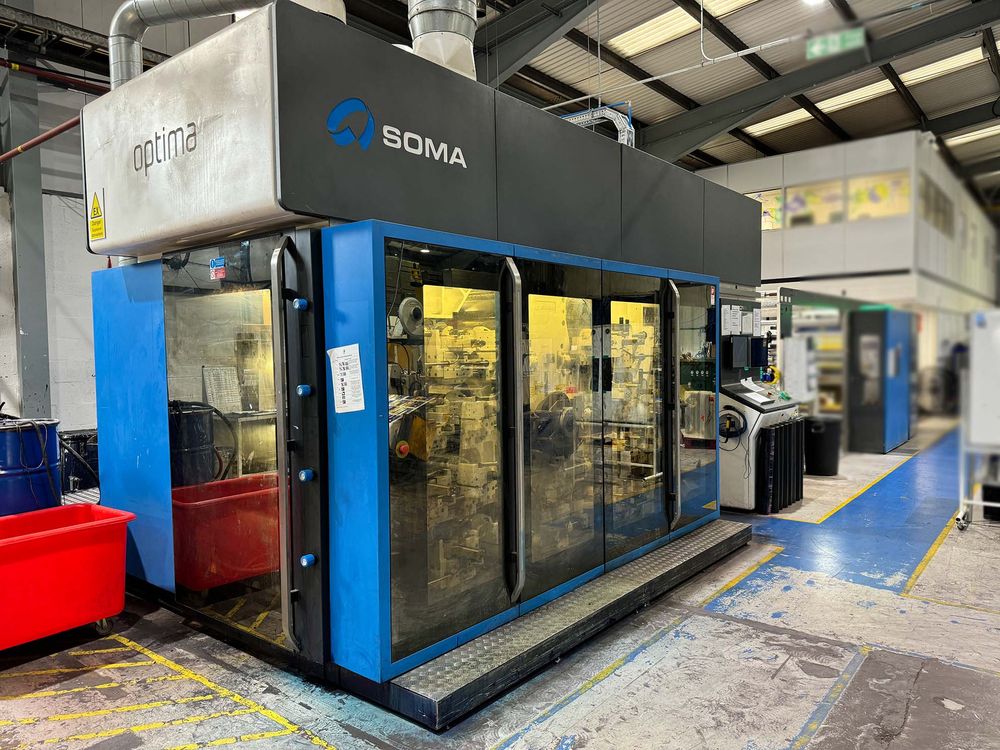

Soma Optima 8 820 mm

Number of printing decks. 8
Max. print width. 820 mm
Max. material width 850 mm
Min. material width 300mm
Min. print length 260 mm if not specified otherwise for optional accessories
Max. print length 600mm
Printing length setting. in steps of 0.1 mm; set print length max. correction +/- 2 %

Anilox cylinder :
Inner diameter 105,158 mm
Perimeter 400 mm
Sleeve length 900 mm
Max. mechanical speed of the machine : 300 m/min

Operational printing speed of the machine :
It depends on the type and quality of the printed material, printing inks, ink transfer, printing length, printing plates
Type of the printed motive: cross lines - picture screen density, capacity of anilox cylinders, reprint of inks, varnish, etc., environment temperature and doctor blade type.

Tension in the printed material:
NONSTOP unwind/rewind 40÷400N
Unwind/rewind without automatic exchange. 10 ÷ 400 N
