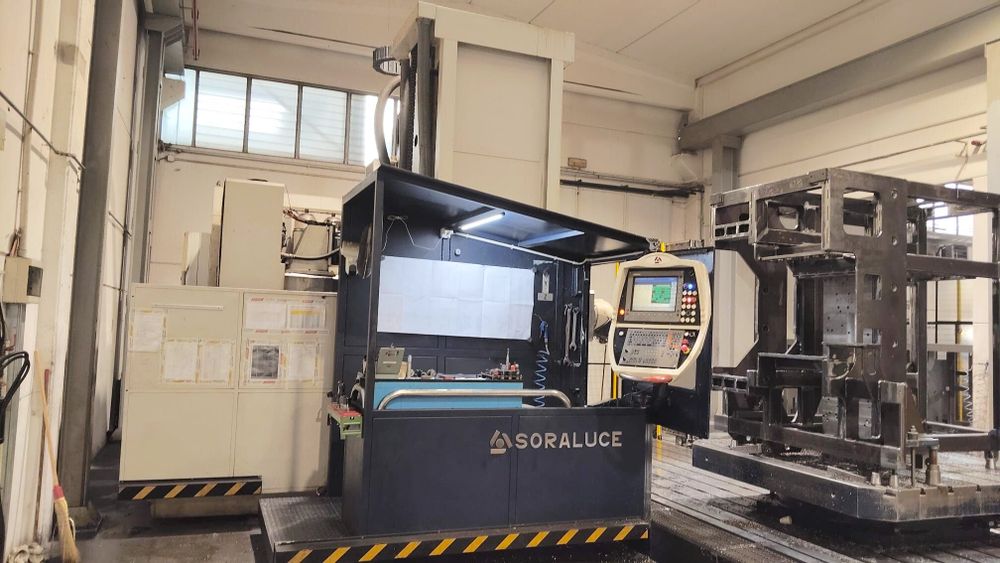

Soraluce FS8000 3000 rpm

SORALUCE FS8000

Working area X 8000 mm
Working area Y 2800 mm (3300 mm with head rotated)
Working area Z 1500 mm
Linear guideways
Heidenhain iTNC530 CNC
Pressurized Heidenhain optical scales
Heidenhain servo motors
Remote electronic handwheel HR410
Spindle power 30 kW (S1)
Spindle speed 3000 rpm
Spindle torque 1240 Nm
Spindle taper ISO50 DIN69871
ZF gearbox
Rapid feed X 15 m/min
Rapid feed Y 15 m/min
Rapid feed Z 15 m/min
Working feed X 5 m/min
Working feed Y 5 m/min
Working feed Z 5 m/min
ATC stations 40
Max tool diameter 125 mm
Max tool diameter with adjacent slots free 250 mm
Max tool length 400 mm
Max tool weight 20 kg
Tool holder ISO50
Tool position vertical/horizontal
Prepared for rotary table hydraulic and electric
Automatic bi-rotary head
Head spindle taper ISO50 DIN69871
Axis A 144 x 2.5°
Axis C 144 x 2.5°
Head max torque 1240 Nm
Head max speed 3000 rpm
Head max power 30 kW
Internal spindle coolant
Total installed power 64 KVA
Machine weight 38400 kg
Machine dimensions 17500 x 4050 x 5020 mm
High pressure coolant 15 Bar 50 L/min
Filtration system 500 L with magnetic separator
Mobile operator platform vertical stroke 1800 mm
User manuals included
Electrical schematics included
CE certification
Longitudinal chip conveyor
Complete head overhaul in 2024
