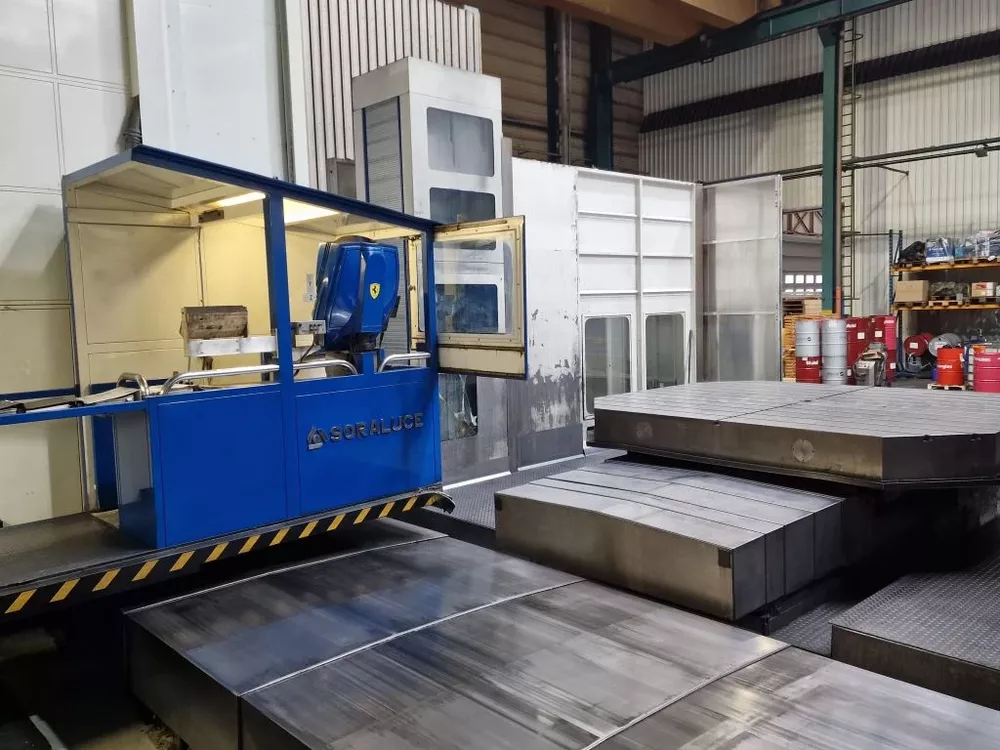

Soraluce SORAMILL FR 6000 4000 rpm (2 steps)

SORALUCE SORAMILL FR 6000
Year: 2004 (Retrofit 2015)

X-axis travel 6000 mm
Y-axis travel 1500 mm
Z-axis travel 3600 mm
W-axis travel 2000 mm
Spindle speed range 20–4000 rpm (2 steps)
Spindle torque 1410 Nm
Clamping force 20000 N
Feedrate X/Y/Z 2–12000 mm/min
Rapid traverse X-axis 20000 mm/min
Rapid traverse Y-axis 15000 mm/min
Rapid traverse Z-axis 25000 mm/min
Spindle motor power at 100% duty cycle 37 kW
CNC-controlled hydrostatic rotary and sliding table
Rotary table brand RÜCKLE
Rotary table type PKTF 8
Rotary table year 1996
Clamping surface 2980 x 3500 mm
V-axis travel 2000 mm
Table load capacity 30000 kg
Tool changer capacity 120 tools
Max tool diameter 125 mm
Max tool diameter with free adjacent seats 250 mm
Max tool length 400 mm
Max tool weight 30 kg
Tool holder ISO 50 (DIN 69871 Form AD)
Mobile operator platform
Electronic handwheel HR 420
Chip conveyor
3D thermal expansion compensation
Z-axis level control
Tapping without compensating chuck (ratio 1:1)
Touch probe system M&H 20.00 wireless
Full protection cabin
Movable chip protection wall
4-position milling head changer
Pick-up station
Universal milling head 1° x 2.5° indexing
360 rear level positions
144 front level positions
Horizontal milling attachment
Henninger universal milling head Type 880-40 ISO 40
Internal cooling through spindle
External cooling through spindle
Total connected load 75 kVA
Machine weight 36200 kg
Space requirement including rotary table 12435 x 8420 x 5085 mm
