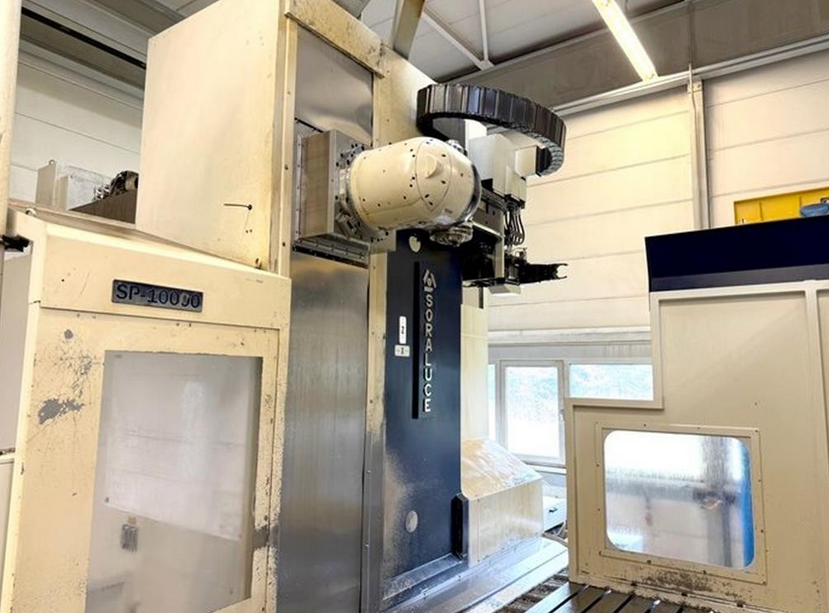

Soraluce SP10.000 4,000 rpm

X-axis Travel: 8,500 mm
Y-axis Travel: 2,000 mm
Z-axis Travel: 1,500 mm
Rapid Travel X/Y/Z: 25,000 mm/min
CNC Controller: HEIDENHAIN iTNC530
Table Size: 10,000 x 1,350 mm
Max. Table Load: 5 t/qm
Milling Head: Orthogonal 1° x 1°
Tool Taper: SK-50
Spindle Speed: 4,000 rpm
Spindle Power: 37 kW
Max. Spindle Torque: 900 Nm
Internal Cooling System: 15 bar
Tool Changer: 60 positions
Handwheel: HR 410
Chip Conveyor
Machine On Time: 39,000 h
Spindle Hours: 16,000 h
Total Power Requirement: 75 kW
Machine Weight: 35 t
Machine Dimensions: 12.7 x 5.2 x 4.6 m
Orthogonal Milling Head Water-Cooled
1° Indexing in 2 Axes
3D Wireless Probe M&H 20.41
Partition Wall for Parallel Operation / Setup
Internal Air Blast
Adapter for High-Speed Milling Spindles with Torque Support
Moving Operator Platform
Monitored Safety Fences
Optional Accessories Available
