1/1

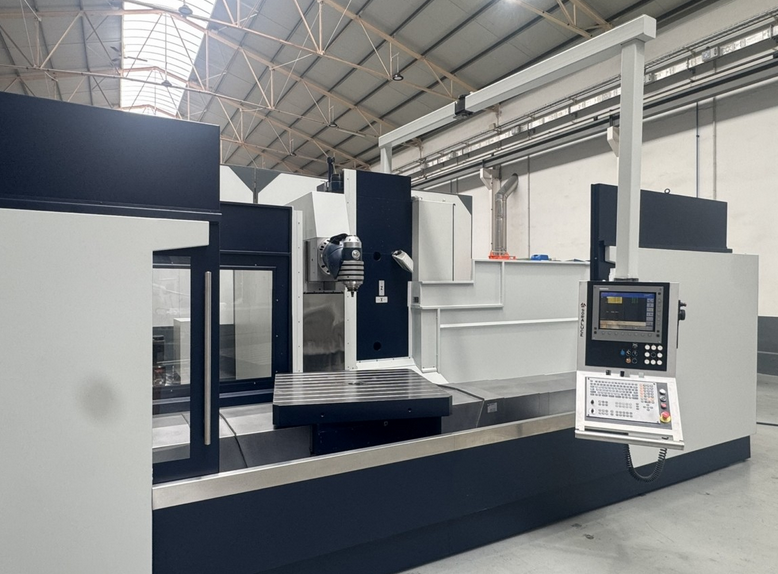

Soraluce TA-D-35A 4000 rpm
Ref :
2759664-3-MT
Condition :
Used
Manufacturer :
Soraluce
Model :
TA-D-35A
Spindle Speed :
4000 rpm
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-travel: 3500 mm
Y-travel: 1200 mm
Z-travel: 1250 mm
Control: Heidenhain TNC-530
Table size: 1250 x 1250 mm
Table weight: 4000 kg
Feedrate: 12,000 mm/min
Spindle speed: 4000 rpm
Power capacity: 24 kW
Taper: ISO 50 DIN 69871 AD
Spindle head: Automatic 2.5 x 2.5 degrees
Handwheel: Heidenhain HR-410
Internal coolant pressure: 20 bar
Total power requirement: 46 kW
Machine weight: 18,000 kg
Machine dimensions: 7800 x 4850 x 3530 mm
FEATURES
Integral enclosure
Double longitudinal chip extractor
Cross chip extractor
500-litre tank with magnetic separator and paper filter
