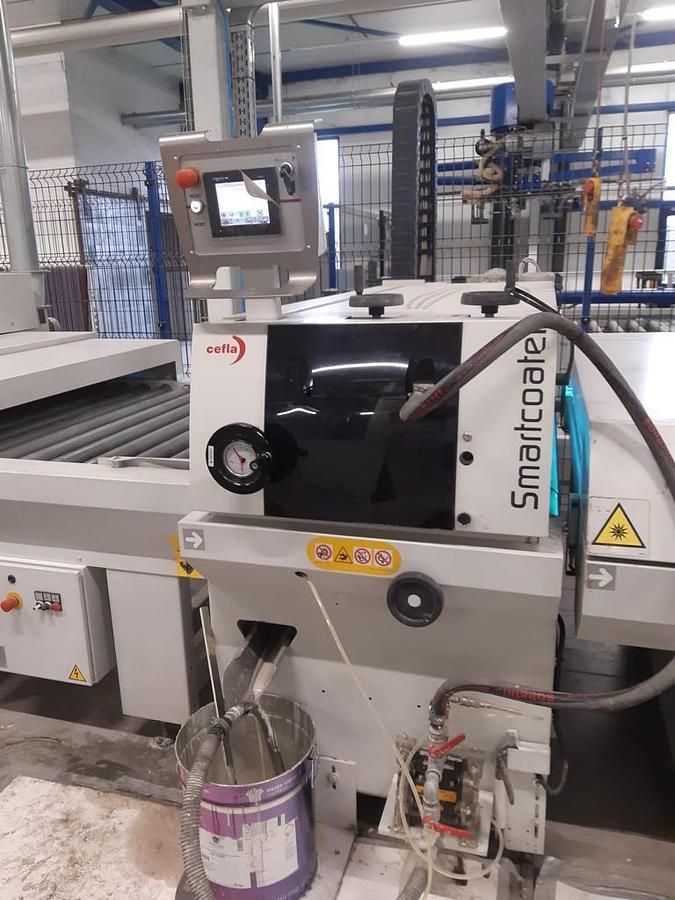

Cefla, Sorbini SMARTCOATER MF-EVO

Coating application machine with reverse-running dosing roller.
Application machine for primers and topcoats.
Adjustable speeds using the frequency converter for transport, application roller and dosing roller.
Control panel with touch screen to set all machine parameters.

- Working width 1,300 mm
- Working height 880 mm - 940 mm
- Workpiece height 3 - 80 mm
- Operating side: right
- Coating roller hardness ~ 50 - 60 Shore
- Application quantity ~ 4-50 g/m²
- Roller diameter: 250 mm
- Dosing roller: 173 mm
- Dosing roller with switchable reverse operation
- Double diaphragm pump 1 piece
- Transport system with belt
- Compressed air connection: 6 bar
- Drivable on treads/track rollers
- Feed rate ~ 4 - 20 m/min
- Control cabinet on the machine, with it
- Volts, Hz 400 / 50
- Voltage fluctuations max. +/- 5 %
