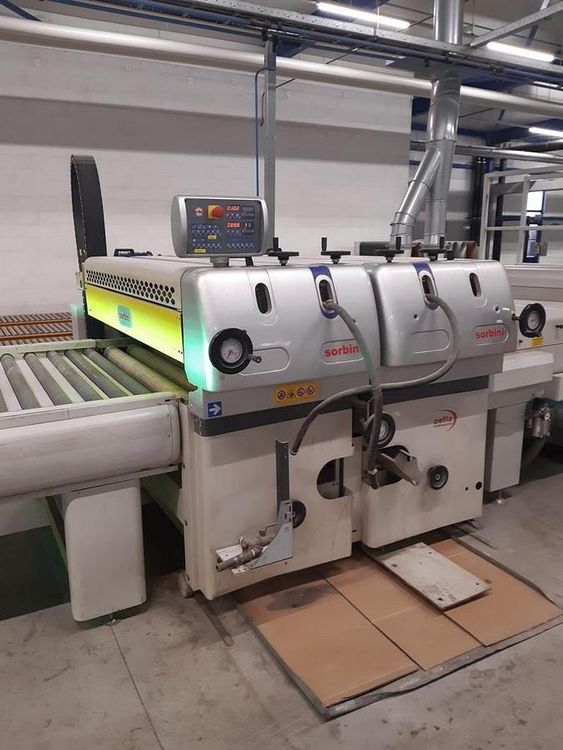

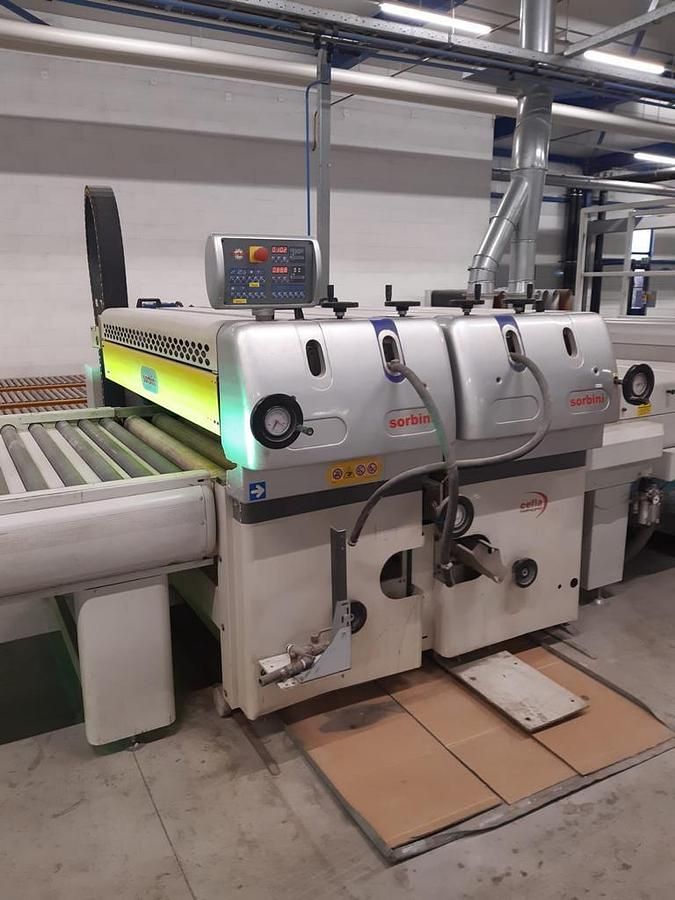

Cefla, Sorbini SMARTCOATER REVERSE MF

AVAILABLE from 08/2026
- Two application units, one in REVERSE
- Roll directions of the rollers in Picture 10
- Working width 1,300 mm
- Working height 880 mm - 940 mm
- Workpiece height ~ 3 - 80 mm
- Operating side: left
- Coating application roller 50 - 60 Shore
- Roller diameter: 250 mm
- Dosing roller: 173 mm
- Double diaphragm pump 1 piece
for both application machines
- Transport system with roller conveyor
- Spacing of roller conveyor: 150 mm
- Roller diameter: 100 mm
- Compressed air connection: 6 bar
- Compressed air consumption: 54 NL/min.
- Length of the machine 1,760 mm
- Width of the machine 3,132 mm
- Drivable on flange rollers
- Feed rate ~ 4 - 20 m/min
- Application amount ~ 4 - 50 g/m²
- Machine weight 2,520 kg
- Control cabinet on the machine, with trolley
- With undercarriage
- Total power 5.5 W / 30 A
- Volts, Hz 400 / 50
- Voltage fluctuations max. +/- 5 %
