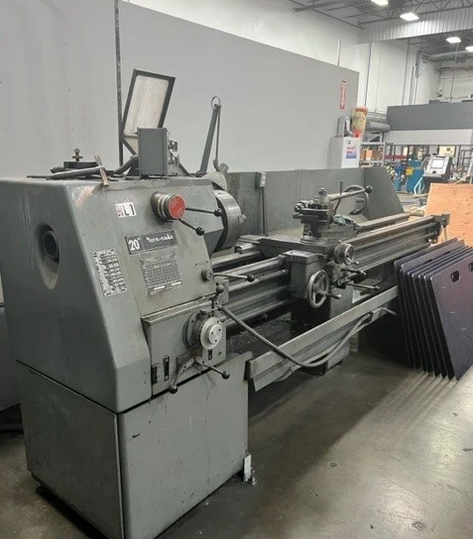

South Bend Engine Lathe 1580 RPM 20" TURN-NADO

Swing Over Bed: 20"
Swing Over Cross Slide: 13"
Swing Over Cross Slide (No Guard): 14"
Swing Over Compound Rest: 4"
Distance Between Centers: 106"
Spindle Nose: 8" D1 Camlock
Spindle Taper: Morse Taper No.5
Spindle Bore: 3-5/32"
Spindle Speed Range: 30 – 1580 RPM
Motor Speed: 1800 / 900 RPM
Motor Power: 10 / 5 HP
Number of Thread Selections: 60
Thread Range: 2-3/4" – 160 TPI
Additional Thread Range: 1-3/8" – 2-1/2" TPI
Longitudinal Feed Range: 0.0021" – 0.1242"
Cross Feed Range: 0.0011" – 0.0678"
Lead Screw: 1-3/8" – 4"
Cross Feed Travel: 12.25"
Cross Feed Travel (With Taper Attachment): 14"
Compound Rest Travel: 3.5"
Tool Post Opening: 1" x 1-7/64"
Tailstock Spindle Diameter: 2.5"
Tailstock Spindle Travel: 6"
Tailstock Taper: Morse Taper No.4
Tailstock Offset: ±0.5"
Bed Width: 13"
Bed Length: 150"
Overall Length: 162"
