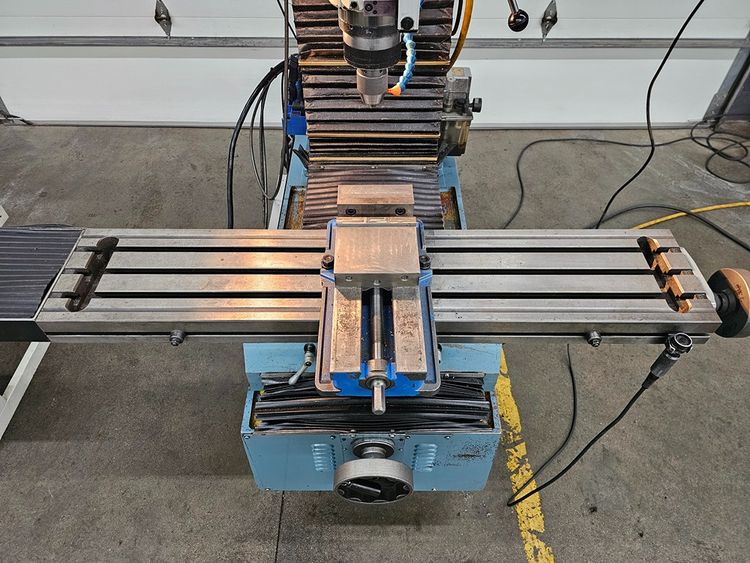

Southwestern Industries PROTO TRAK DPM Vertical 4200 rpm

Control updated: 2018
X-axis travel: 31 in
Y-axis travel: 17 in
Z-axis travel: 25 in

3-axis CNC control
Proto Trak A.G.E. control
Manual and CNC operation
DC servo motors
AC spindle motor
Ball screws
Circular interpolation
Linear interpolation
Handwheels
Glass scales
Glass scale on quill
Work light
Automatic lubrication

Table size: 10 × 50 in
Maximum table load: 1320 lb

Spindle speed range: 70–4200 rpm
Spindle motor power: 5 HP
Spindle taper: 40 taper
Spindle center to column distance: 17.3 in
Quill diameter: 3.937 in
Quill travel: 5 in

Quill feed per revolution: 0.002 in/rev
Quill feed per revolution: 0.004 in/rev
Quill feed per revolution: 0.006 in/rev

Milling capacity: 3 in³/min
Drilling capacity in mild steel: 1.5 in
Tapping capacity: 1.25 in
Boring capacity: 4.75 in

Power drawbar
Machine vise 6 in
Machine vise model D688
Tool holders 40 taper
Quantity of tool holders: 10

Overall dimensions: 70 × 72 × 89 in
Machine weight: 4500 lb
