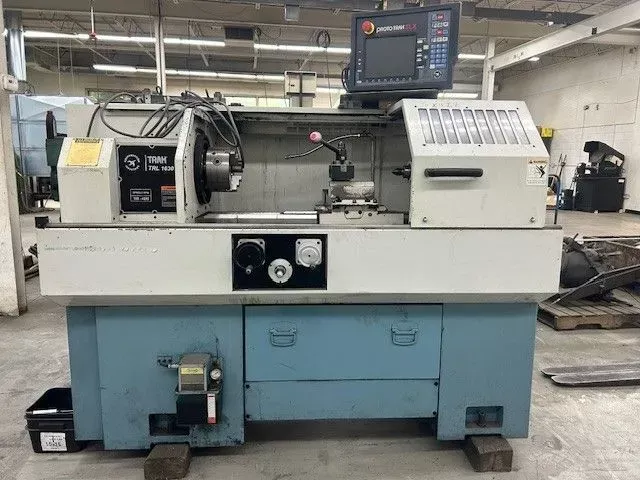

Southwestern Industries Proto Trak SLX CNC Controller 4,000 RPM (infinitely variable) TRAK 1630HS-SX 2 Axis

Cross slide travel (X) 8.6"
Longitudinal travel (Z) 30"
Height of centers 8"
Swing over bed 16"
Swing over cross slide 8.6"
Swing over saddle wings 16"
Distance between centers 30"
Spindle speed range 150 – 4,000 RPM (infinitely variable)
Spindle taper A2-4
Spindle bore 1.57"
Tailstock quill travel 6.3"
Tailstock quill diameter 2.36"
Tailstock quill taper #5 MT
Electrics 220V/3Ph/60Hz
Machine weight approx. 2,500 lbs
Machine dimensions approx. 82"L x 46"W x 67"H

Equipped with
Southwestern Industries Proto Trak SLX CNC Controller (2-Axis Digital Readout During Manual Operation)
8″ Gator model PA3-8″ 3-Jaw Forged Steel Adjustable Scroll Chuck
Coolant Filtration System
Constant Surface Speed
Programmable Spindle Speeds
Servo Motors & Ground Ballscrews
AC Spindle Drive
Electronic Handwheels for X & Z Manual Traverse
Jogstick for Convenient Jog at Rapid Travel
Unlimited Number of Thread Pitches & Up to 10 Leads
Aloris Quick Change Tool Post
Misc. Tool Holders
Tailstock
