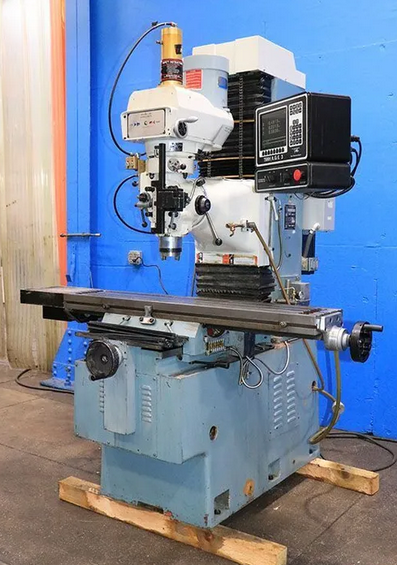

Southwestern Industries TRAK DPM Vertical 5000 RPM

Table size: 10″ x 50″
X-axis travel: 31″
Y-axis travel: 17″
Z-axis travel: 23.5″
Quill travel: 5″
Spindle taper: #40 NST
Spindle nose to table: 0 – 24″
Spindle center to column face: 17.3″
Head swivel left & right: 90 degrees
Spindle speed range: 40 – 5000 RPM
Quill feeds: 0.002, 0.004, 0.006 IPR
Maximum workpiece weight: 1,320 lbs
Approximate dimensions: 68″ W x 64″ D x 95″ H
Machine weight: 4,100 lbs

Equipment:
Proto-Trak AGE-3 control updated in 2019
Three-axis simultaneous interpolation including helical canned cycles
In manual mode 3-axis DRO
RS232 port & floppy disk drive
Quill digital readout (Z is head up & down, not quill)
Square box ways – hardened & ground
Precision ball screws
Coolant system
Automatic lubrication system
Bellows way covers
3 HP spindle motor
Transition freely from 3-axis CNC to manual
Ideal for toolroom or prototype work
