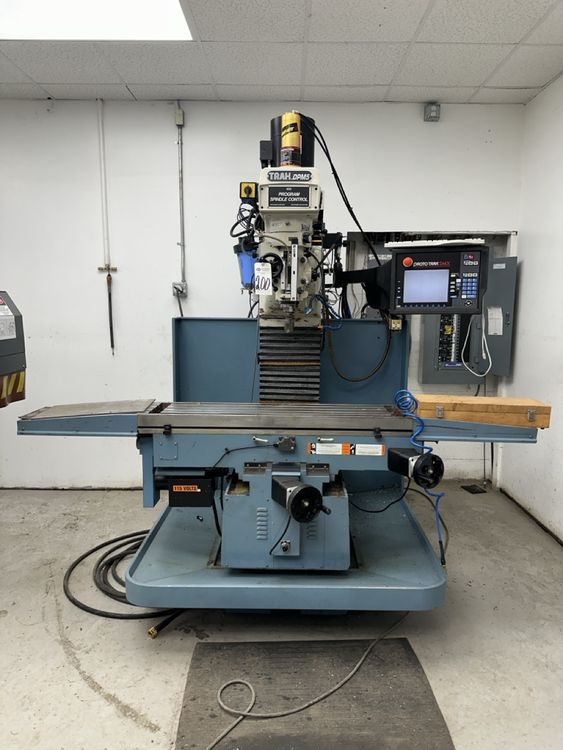

Southwestern Industries TRAK DPMSX5P Vertical 5000 RPM

X Axis Travel 40″
Y Axis Travel 20″
Z Axis Travel 23.5″

Quill Diameter 3.9375″
Maximum Quill Travel 5″
Spindle Taper NMTB 40
Spindle Speed Range 40-600 RPM
Spindle Speed Range 300-5000 RPM
Spindle Center to Column Face 20″
Spindle Motor Power 5 HP
Rapid Traverse X, Y, Z 150 IPM
Power Requirements, Control 110V; 1P; 8A
Power Requirements, Machine 220V; 3P; 17A
Maximum Workpiece Weight 1760 LBS
Height of Table from Bottom of Bed 41″
Max Spindle Nose to Table 23.5″
Minimum Machine Height 87″
Maximum Machine Height 98″
Width of Machine Including Table 94″
Length with Electrical Box Door Closed 71″
Overall Width Including Full Table Traverse 136″
Overall Length with Electrical Door Open 81″
Footprint of Machine 24″ x 48.4″
Weight Net / Shipping 4400 / 4600 LBS
Table Size 50″ x 12″
