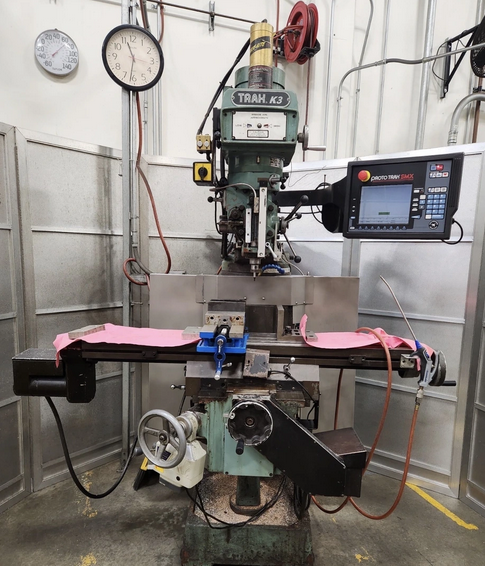

SouthWestern TRAK K3SX Vertical 4200 RPM

Ref : 2799197-3-AW

Condition : Used

Manufacturer : SouthWestern

Model : TRAK K3SX

Type : Vertical

Spindle Speed : 4200 RPM

Year(s) : 2007

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X axis travel: 32"
Y axis travel: 16"
Knee travel: 16"
Ram travel: 15"
Quill travel: 5"

ProtoTrak SMX 2-Axis CNC controller
Power knee feed
Torque-Rite power draw bar
Electric handwheels

Table size: 10" x 50"

Spindle speed: 60 - 4200 RPM
Spindle taper: R8
Spindle motor power: 3 HP

Weight: 4,500 lbs.
Overall dimensions: 6' x 7' x 8'
Electrical: 220V / 3PH
