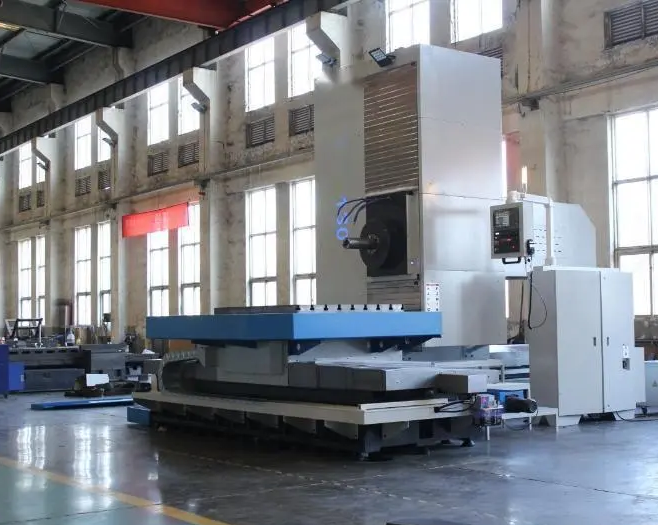

SP-130 130 mm 2000 rpm (stepless)

X axis travel (table): 1800.1 mm
Y axis travel (vertical head): 1599.9 mm
Spindle travel: 549.91 mm
Quill travel: 21.65 mm
Distance spindle centerline to worktable: 0 – 1600 mm
Minimum spindle end face to table center: 50 mm

Control system: CNC Fanuc OI-MF Plus with Manual Guide I
Rapid traverse speed (X/Y/Z axes): 10 m/min
Rapid traverse speed (W axis): 5 m/min
Feed rate (X/Y/Z/W axes): 5 – 2000 mm/min

Spindle diameter: 130 mm
Spindle bore: 130 mm
Spindle taper: BT50 MAS403 (45°)
Spindle speed range: 12 – 2000 rpm (stepless)
Spindle motor power: 15 / 18.5 kW
Spindle torque: 1200 – 1500 Nm (30 min rating)

Maximum tool weight: 25 kg
Worktable dimensions: 1400 mm × 1000 mm
Worktable maximum load: 5000 kg
Worktable T-slot specification: 7 slots, 22 mm width, 125 mm spacing
Worktable indexing accuracy: 0.001°
Worktable rotation accuracy: 10 arcsec

Ball screw diameter X/Y/Z axes: Ø63 × 10 mm
Ball screw diameter W axis: Ø50 × 10 mm

Machine dimensions (L × W × H): 7100 × 6600 × 3600 mm
Machine weight: 19000 kg
Total electrical capacity: 50 KVA
CNC system: Fanuc OI MF Plus
Positioning accuracy X/Y/Z axes: 0.030 mm
Positioning accuracy W axis: 0.025 mm
Repeatability X/Y/Z/W axes: 0.020 mm
