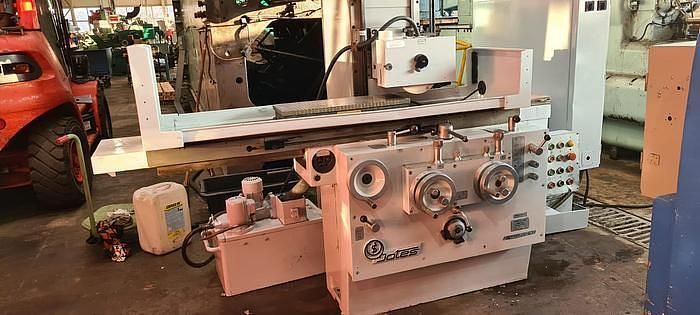

SPA 25 Surface Grinder

Table Size: 250 x 630 mm
Maximum Grinding Width with Wheel Overrun: 250 mm
Maximum Grinding Width without Wheel Overrun: 315 mm
Maximum Grinding Length: 630 mm
Table T-Slots: 1 x 14 H7 mm, 2 x 14 H12 mm
Maximum Distance Between Table Surface and Spindle Axis: 500 mm
Minimum Distance Between Table Surface and Spindle Axis: 75 mm
Maximum Workpiece Height with Ø250 mm Grinding Wheel: 370 mm
Minimum Hydraulic Longitudinal Table Travel: 80 mm
Maximum Workpiece Weight: 200 kg
Table Feed Speed: 2 - 25 m/min
Maximum Horizontal Column Travel: 290 mm
Rapid Grinding Wheel Feed: 0.3 m/min
Grinding Spindle Speed: 2900 / 1445 RPM
Power Supply: 380 V
Control Voltage: 220 V
Total Power: 13 kW
Machine Dimensions: 3130 x 3140 x 1880 mm
Machine Weight: 3100 kg
