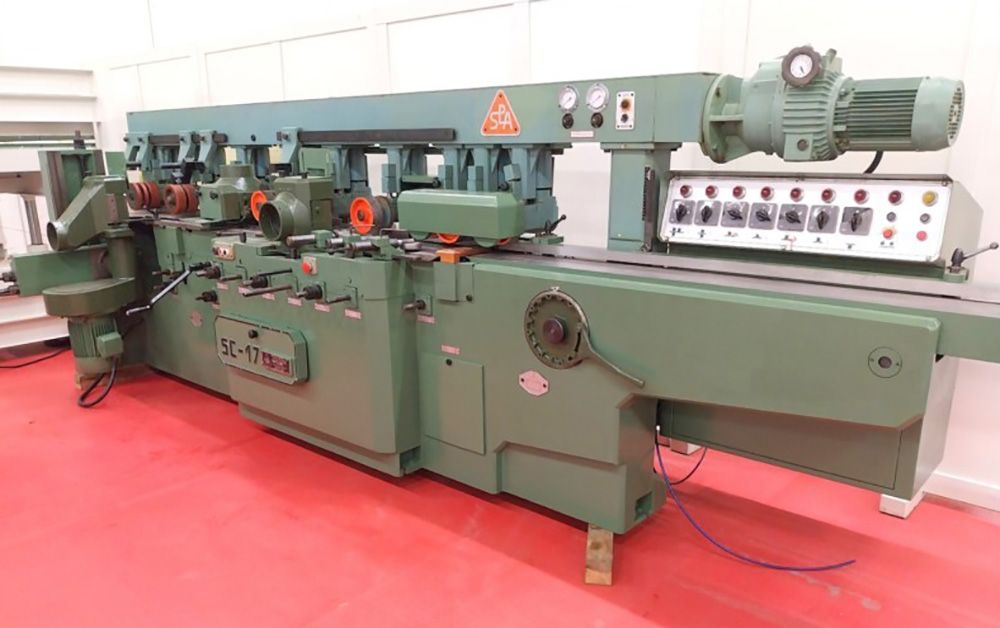

Spanevello SC 17

Automatic 7-spindle moulding machine for window frames, frames,
profiles, joinery, carpentry, wooden packaging and various

Technical data:
Sturdy structure with electro-welded steel base
Working width 170 mm
Working height 120 mm
Variable feed speed 5/25 mt/min
Automatic lifting of upper beam

Composition:
1° spindle: Surface planer - Motor Hp 4
2° spindle: Right vertical spindle moulder - Motor Hp 4
3° spindle: Left vertical spindle moulder - Motor Hp 4
4° spindle: Right vertical spindle moulder - Motor Hp 4
5° spindle: Thickness planer - Motor Hp 7,5
6° spindle: Right vertical spindle moulder - Motor Hp 4
7° Universal spindle 180° - Motor Hp 8,5
Diameter of shafts of working heads mm 40
Shaft rotations of working heads 6000 rpm
Power of feed motor Hp 2
Suction inlet diameter 150 mm
Overall dimensions mm 4800 x 1650 x 1450 h
Weight kg 3000
