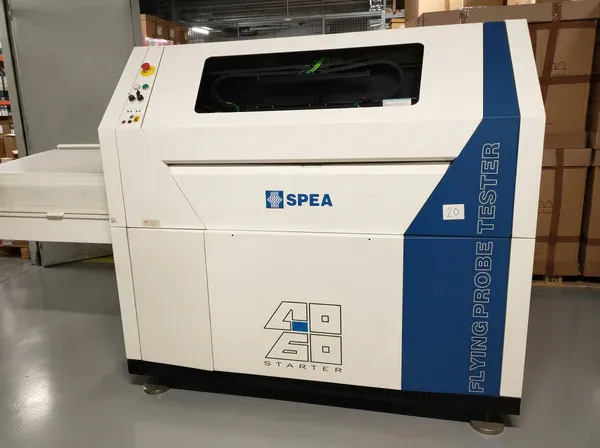

Spea 4060 S Flying Probe Tester

• Machine Type: Flying Probe Tester
• Year: 2018
• Serial Number: TQxxx
• Operating System: Windows 7 + Leonardo Suite OS1 v3.10
• Certification: CE
• Condition: Used — Fully Functional
• Operating Hours: 13,490 Hours
• Power-On Test: 100% PASS (24/06/2026)

Probe System
• 4 × ZPROMEA-12 Top-Side Flying Probes
• Analog & Digital Probe Technology
• Active Shield on All Probes
• Active Frequency Divider on All Probes
• Repeatability: 10 μm
• Minimum Pad Size: 01005 (0.4 × 0.2 mm)

Test Instrumentation
• Signal Generator: ±10V / 100mA / 200kHz
• High Voltage Driver: ±50V / 100mA
• Active Guard: ±10V / 100mA with Sensing
• Current Booster: ±40V / 3A / 100W
• Voltage Booster: ±100V / 1A / 100W
• High-Speed DVM/Digitizer: ±100V AC/DC / 2 μs
• Frequency Meter: 10 MHz / 10 ns
• 64-Channel Analog Scanner with Expansion & Frequency Divider
• 8 Opto Inputs + 8 Normally Open Relay Outputs

Software & Licenses
• Leonardo Suite OS1 v3.10
• Leonardo Fly YA Gold License
• Flying Probe 40xx-VHS License
• Flying Probe 40xx-HLA License
• Junction Scan (JTAG / Boundary Scan) License
• Leonardo NZT License (2 Licenses)
• QSoft Suite Gold
• Leonardo Test Program Execution YA
• QSoft Release 3.50
• 3 Software Dongles Included
