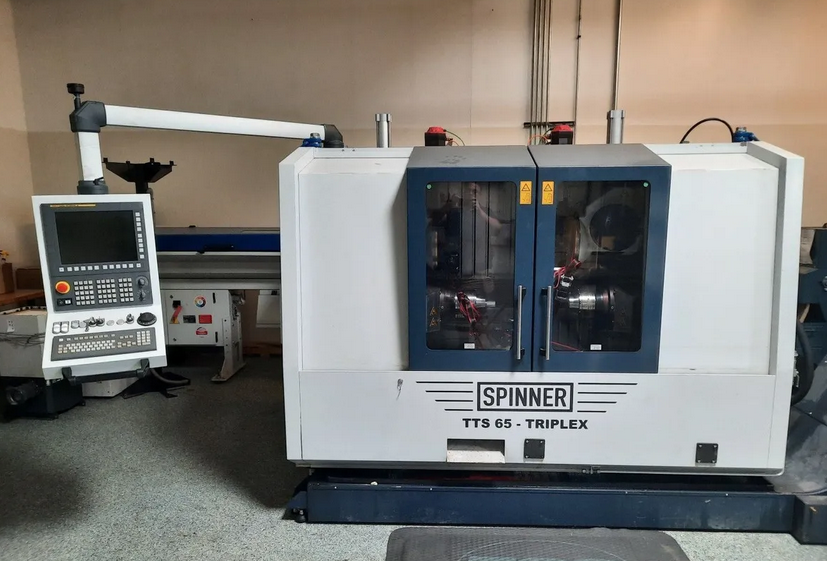

Spinner Fanuc CNC Control 5000 RPM TTS-65 TRIPLEX 8 Axis

X1/X3 Axis Travel: 7.1"
X2 Axis Travel: 7.1"
Y1/Y3 Axis Travel: +1.77" / -1.77"
Z1/Z3 Axis Travel: 27.7"
Z2 Axis Travel: 24.4"
Rapid Traverse X: 1181 IPM
Rapid Traverse Y: 1181 IPM
Rapid Traverse Z: 1181 IPM

Axis: 8
Sub Spindle
Live Tooling
Y-Axis
Spindle 1 Speed: 5000 RPM
Spindle 1 Nose: A6/DIN
Spindle 1 Bore: 2.56"
Spindle 1 Power: 32.2 HP
Spindle 1 Torque: 111.4 ft/lb
Spindle 2 Speed: 7000 RPM
Spindle 2 Nose: 110 mm
Spindle 2 Bore: 1.65"
Spindle 2 Power: 29.5 HP
Spindle 2 Torque: 94.4 ft/lb
Chuck Diameter Main: 8.3"
Chuck Diameter Sub: 5.5"
Bar Capacity: 2.56"
3 Turrets
3 x 12 Tool Stations
Driven Tool Stations: All
Tool Holder: BMT45
Optional Tool Holder: VDI25
Driven Tool Speed: 8000 RPM
Driven Tool Power: 5.76 HP
Driven Tool Torque: 10 ft/lb
Machine Length: 113.4"
Machine Width: 83.9"
Machine Height: 78.3"
Machine Weight: 17,416.5 lb
6' Iemca Master 880 Verso Bar Feeder
Royal Rota Rack
Collet Chucks Main & Sub
Misc. Tool Holders
Mist Collector
Transformer
Power On Hours: 1,015
Run Time Hours: 174
Cut Time Hours: 74
