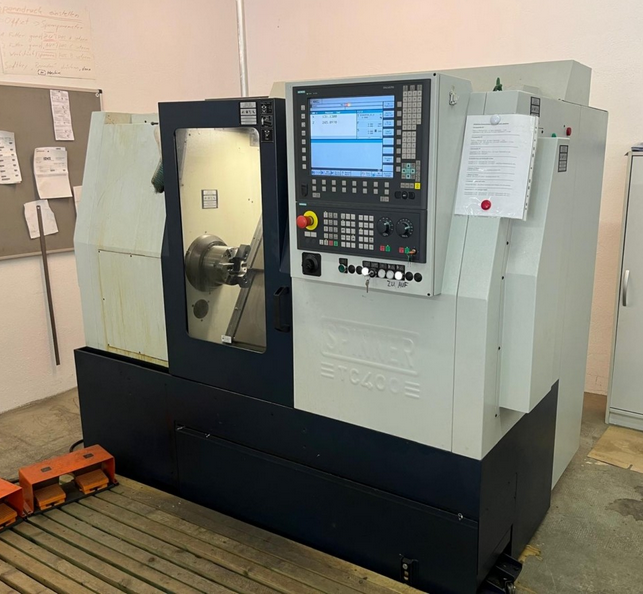

Spinner Sinumerik 840D-SL 6000 UpM TCA 400-42 2 Axis

Ref : 2716304-3-GO

Condition : Used

Manufacturer : Spinner

Controller : Sinumerik 840D-SL

Spindle Speed : 6000 UpM

Model : TCA 400-42

Nb Of Axis : 2 Axis

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

SPINNER TCA 400-42
Build year 2011

turning diameter280 mm
turning length515 mm
controlSiemens Sinumerik 840D-SL
turning diameter over bed400 mm
spindle speed:6000 UpM
spindle bore42 mm
spindle nose110 mm DIN 55026/A6
spindle drive10 kW
max. torque64/76 Nm
turret (x-stations)12
tool adaptorVDI 30
tailstock quill taper ISOMK 4
diameter of quill60 mm
quill stroke125 mm
Number of working hoursca. 2800 h
weight of the machine ca.3 t
dimensions of the machine ca.2,1 x 1,35 x 1,8 m

Electric 400 Volt
Chip conveyornein/no
Cooling equipment
Cabin
Machinelight
Power clamp.chuck165 mm
Set jaws for the chuckx fach
Squaring headVDI 30 diverse
Machine manual
