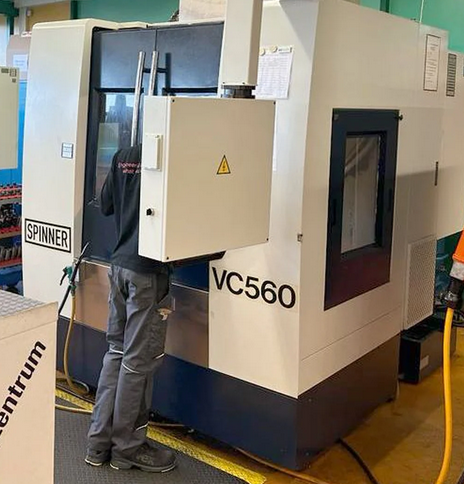

Spinner VC-560 3 Axis

X-Axis Travel 560 mm
Y-Axis Travel 410 mm
Z-Axis Travel 410 mm
Table Length 650 mm
Table Width 410 mm
Number of T-Slots 3
T-Slot Width 14 mm
Table Load Max 250 kg
Control SPINNER-FANUC 21iMB
Tool Magazine 24 Places
Tool Diameter Max 77 mm
Diameter with Free Adjacent Pockets 125 mm
Tool Length 200 mm
Max Tool Weight 5 kg
Tool Change Time 1.3 s
Spindle Nose SK40 DIN 69871A
Spindle Speed 0–12,000 rpm Stepless
Rapid Traverse 48 m/min
Air Supply 6 bar
Voltage 3×400 V 50 Hz
Total Power 20 kVA
Machine Weight ≈5500 kg
Overall Dimensions 2400×1800×2500 mm
Coolant System 250 l
Oil Mist Extractor
Status Light
