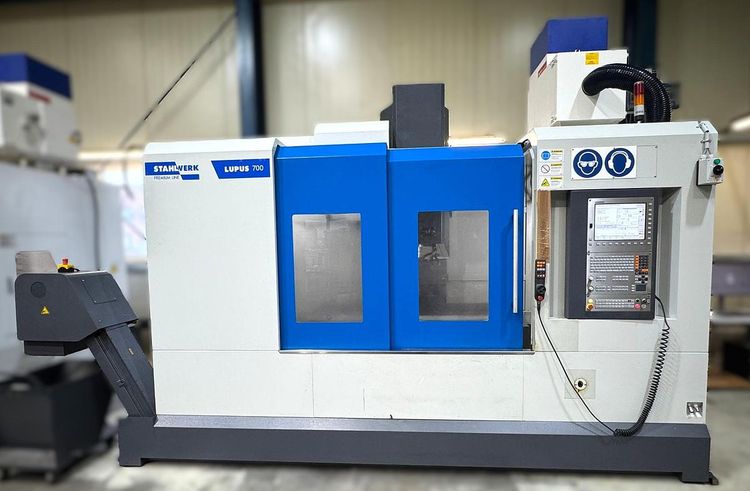

STAHLWERK-KNUTH LUPUS 700 3 Axis

X-Axis Travel: 1,500 mm
Y-Axis Travel: 700 mm
Z-Axis Travel: 610 mm
Control: Heidenhain TNC 530 CNC
Table Dimensions: 1,600 x 700 mm
Table Load Capacity: 2,000 kg
Distance Spindle Nose to Table: 140 - 750 mm
Spindle Overhang: 706 mm
Rapid Travel (X/Y/Z): 48,000 mm/min
Feedrate (X/Y/Z): 12,000 mm/min
Spindle Speed: 12,000 RPM
Spindle Taper: BT 40
Tool Magazine Capacity: 32 positions
Maximum Tool Diameter: 125 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 7 kg
Tool Change Time: 3.0 sec
Operating Hours: 14,724 h
Spindle Hours: 4,873 h
Through-Spindle Coolant: 20 bar
Chip Conveyor
Heidenhain Length Measuring Device
Tool Measurement Heidenhain TT-160
