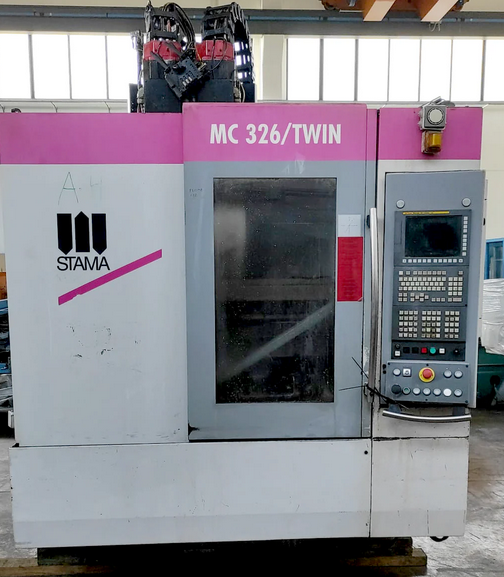

Stama MC 326 / TWIN 4 Axis

X-Axis Travel: 520 mm
Y-Axis Travel: 360 mm
Z-Axis Travel: 360 mm
Rapid Traverse: 60 m/min
Control Type: FANUC 31i-A5 CNC
Number of Axes: 4
Number of Spindles: 2
Number of Tables: 2
Table Length: 700 mm
Table Width: 350 mm
Table Load: 450 kg
Spindle Speed: 36 – 12,000 RPM
Spindle Motor Power: 18.5 kW
Spindle Nose: HSK-A63
Distance Spindle Nose to Table: 200 – 560 mm
Distance Between Spindles: 266 mm
Tool Capacity: 2 x 21
Max Tool Diameter: 88 mm
Max Tool Diameter with Free Adjacent: 125 mm
Max Tool Length: 300 mm
Max Tool Weight: 5 kg
Chip-to-Chip Time: 2.4 sec
Air Pressure: 6 bar
Voltage: 400 V
Frequency: 50 Hz
Total Power: 40 kVA
Machine Dimensions: 3300 x 3300 x 3200 mm
Machine Weight: 5600 kg
Coolant System
High Pressure Coolant Device
Coolant Through Spindle
Paper Filtration System
Chip Conveyor
