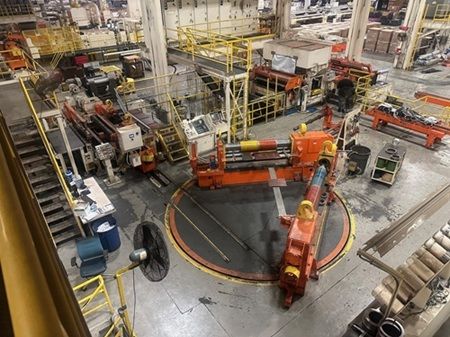

Stamco SINGLE LOOP SLITTING LINE Coil Width Range: 12" – 72" (74" untrimmed)

Material Thickness Range: 0.015" – 0.135"
Shear Strength: 40,000 – 90,000 PSI
Yield Strength: 35,000 – 90,000 PSI

Coil Weight Capacity: 65,000 lb
Coil Outside Diameter: 36" – 80"
Coil Inside Diameter (Entry): 20" – 24" (up to 28"–32" with filler plates)
Coil Inside Diameter (Exit): 20" or 24"

Line Speed: 500 FPM (low gear), 1000 FPM (high gear)
Slitter Arbor Diameter: 8.000"

Uncoiler Drive: 200 HP DC feed-up drive / drag generator brake
Slitter Drive: 125 HP DC
Tension Stand Drive: 125 HP DC feed-up drive / drag generator brake
Recoiler Drive: 200 HP DC
Scrap Baler Drive: AC motor

Slitter Heads: 2 packed arbor slitter heads
Edge Trimmer Heads: 1

Line Direction: Left to Right

Line Components:
Entry Storage Turnstile (4-arm)
Coil Loading Car
Cantilever Mandrel Uncoiler with hydraulic drum and hold-down roll
Uncoiler Outboard Support
Edge Control System
Peeler Blades (dual pivoting/telescoping)
Entry Pinch Rolls
Crop Shear with threading table and scrap cart
Thickness Measurement System (non-contact)
Side Guides (roller type)
Bridle Roll (pivoting)
Slitter Base with DC drive
Slitter Head Storage Tray
Slitter Tooling Package
Edge Trim Scrap Baler System
Tension Stand (roller type)
Strip Separator Spindles
Shape Correction Leveler (13-roll cassette type)
Exit Crop Shear and scrap cart
Inspection Table with lighting
Recoiler Threading Table
Quill Type Drum Turret Recoiler (200 HP DC drive)
Coil Unloading Car
Rotating Turntable (90°)
Exit Coil Scale
Exit Storage Turnstile
Operator Control Stations
AC Controls
Variable Speed Drives
Closed Loop Hydraulic System
