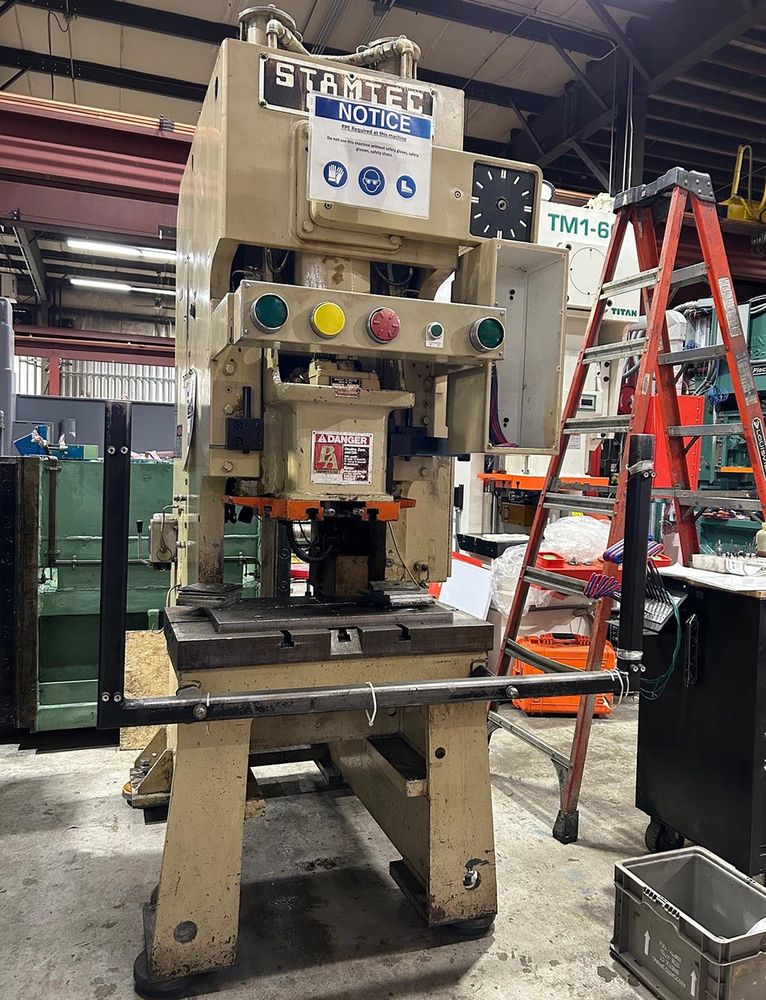

Stamtec G1-35 35 ton

Press force: 35 ton
Stroke: 2.758 in
Speed (variable): 40 – 120 spm
Full tonnage off bottom: 0.126 in
Slide adjustment: 2.167 in
Shut height (S.D.A.U. over bolster): 8.668 in
Bed area: 31.52 in L-R x 15.76 in F-B
Slide area: 14.18 in L-R x 9.85 in F-B
Motor power: 4 HP
Electrical: 230 / 480 V / 60 Hz / 3 Ph
Weight: approx. 6000 lbs
Dimensions: 50 in L x 37 in W x 100 in H

Features / Equipment
Gap frame press
Air clutch and brake
Cieco control with time-based brake monitor
Air counterbalances
Hydraulic overload
Automatic recirculating lubrication system
Energy efficient motor
T-slotted ram
3 in T-slotted bolster
4 isolation mounts
Can be inspected under power
