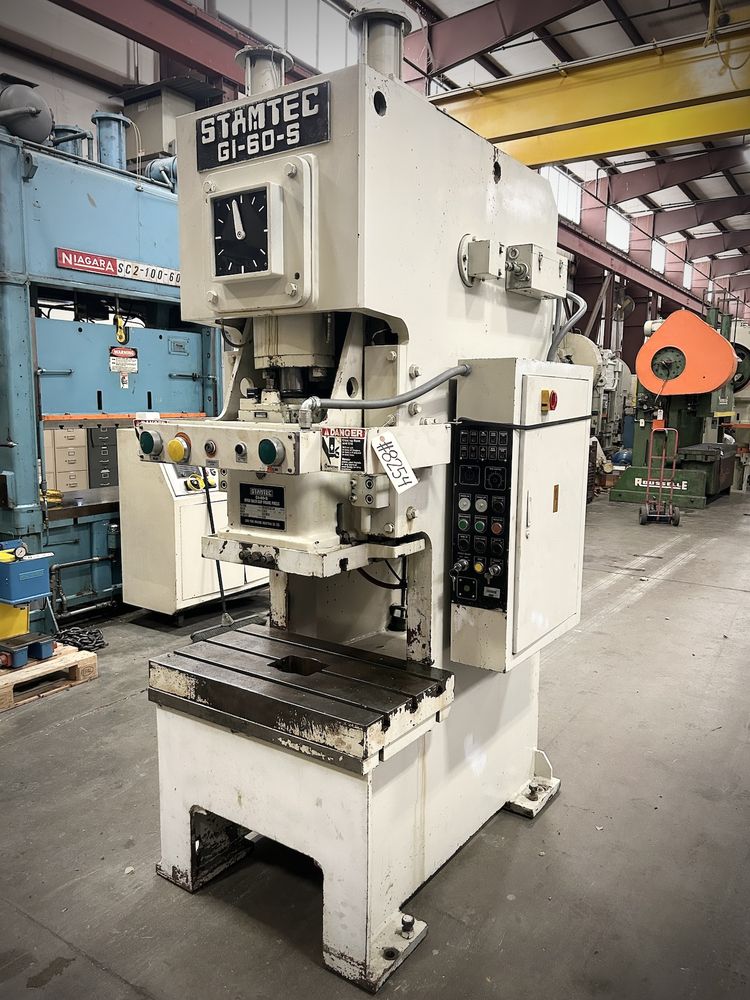

Stamtec GA-60-S 66 US ton

5" stroke
13.3" max die height
35.4" RL x 20.5" FB bed area
60 SPM
3" slide adjustment
19.7" RL x 15.8" FB slide area (T-slotted)
3.5" x 35.4" RL x 20.5" FB bolster plate (T-slotted)
19" distance between uprights
31.5" distance floor to bed
Stamtec air clutch / brake combination
7.5 HP 1750 RPM 480V-3-60 motor & Stamtec press control
98" H x 40" RL x 69" FB dimensions
11,000 lbs weight

HYDRAULIC OVERLOAD PROTECTION
LOW DEFLECTION
SUPER RIGID STEEL FRAME
EXTRA LONG 6 PT CENTERED GIBS
REMOVABLE BOLSTER & SLIDE PLATE
AUTOMATIC LUBRICATION SYSTEM
DUAL AIR COUNTERBALANCES
SINGLE BACK GEARED DESIGN
FLOOR STANDING
