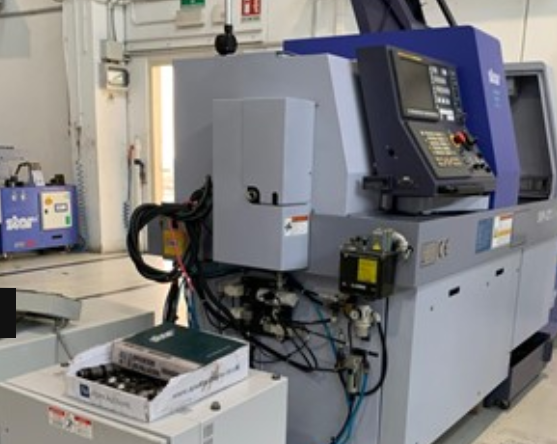

Star CNC CONTROL 10,000 rpm SR 20 J Type C 7 Axis

X-Axis Travel: 310 mm
C-Axis: Yes
Turning Length: 205 mm
Max Turning Diameter: 20 mm
Number of Axes: 7
Bar Work Capacity: 80 mm
Tool Magazine Capacity: 6
Tool Holder: Square 12 mm
Upper Turret X-Axis Travel: 100 mm
Driven Tool Speed: 8000 rpm
Driven Tool Power: 1.2 kW
Number of Upper Turrets: 2
Max Drilling Capability: 8 mm
Max Tapping Capability: M6 x P1.0
Cross Milling Tools: 3
Rapid Feed Rate: 35 m/min (X, Y, Z, XB, ZB)
Main Spindle Speed: 10,000 rpm
Main Spindle Power: 2.2/3.7 kW
Coolant Tank Capacity: 170 liters
High-Pressure Coolant: 15 bar
Signal Lamp
Part Catcher
Tool Breakage Probe
Mist Collector
Work Area Light
CE Conformity
Fire Extinguishing System STAT X
Bar Loader FMB MINIMAG 3200/A
Hydrajet BF20-2000 High Pressure Cooling System
7 Axis
Spindle Clamp Unit
Coolant Level Detector
Rotary Magic Guide Bush
Working Hours (Under Power): 54,390
Working Hours (Cutting Time): 15,663
Nominal Power: 5.2 kVA
Machine Length: 2250 mm
Machine Width: 1200 mm
Machine Height: 1700 mm
Machine Weight: 2200 kg
