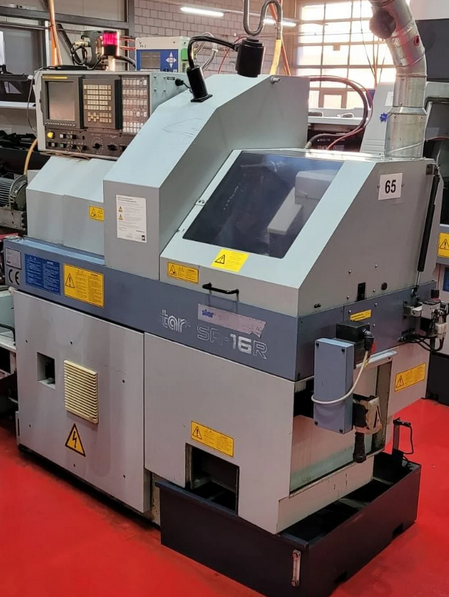

Star Fanuc Corporation Series 18i-T 12000 rpm Micronics SA-16 R 5 Axis

CNC automatic lathe
Control: Fanuc Corporation Series 18i-T
Number of axes: 5
Number of spindles: 2
Maximum turning diameter: 16 mm
Maximum drilling diameter: 7 mm
Maximum threading diameter: 6 M
Bar feed diameter: 1–12 mm
Main spindle speed: 500–12000 rpm
Main spindle motor power: 2.2 / 3.7 kW
Back spindle speed: 500–8000 rpm
Back spindle power: 0.5 kW
C-axis indexing resolution: 15°
Turning tool positions: 6
Drilling tool positions: 2
Cross processing tool positions: 3
Counter operation tool positions: 4
Driven tool speed: 7500 rpm
Rapid traverse: 18 m/min
Cutting speed: 10000 mm/min
Electrical supply: 3×400 V, 50 Hz
Air supply: 5 bar
Total installed power: 6 kVA
Machine weight: 1700 kg
Overall length: 2090 mm
Overall width: 770 mm
Overall height: 1660 mm
Bar feeder: LNS Group TRYTON 112
Bar feeder capacity: 1–12 mm
Coolant tank capacity: 80 L
Parts catcher included
Workpiece conveyor included
Lighting lamp included
Fire extinguishing system: Siemens AG safety system
