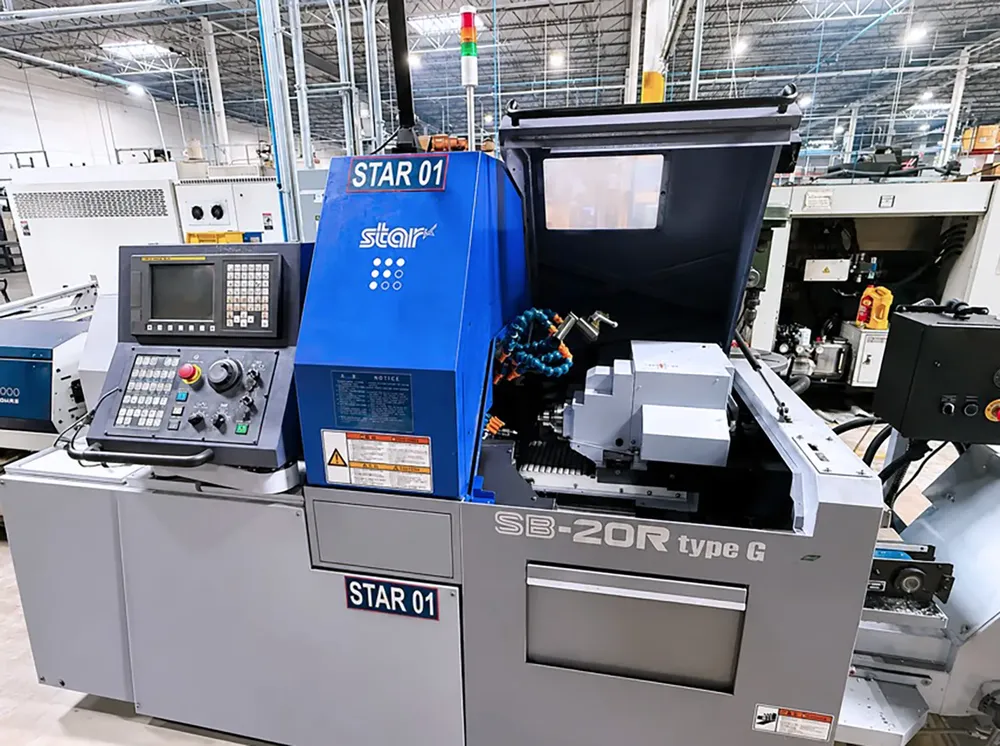

Star FANUC Series 0i-TF CNC Control 10,000 RPM SB-20R 7 Axis

Rapid Traverse: Up to 35 m/min (1,378 IPM)
Controlled Axes: 7
Control: FANUC Series 0i-TF CNC Control
Coolant System: Flood Coolant with High-Pressure Capable Plumbing
Maximum Bar Capacity: 20 mm (0.787 in)
Maximum Turning Diameter: 20 mm (0.787 in)
Maximum Machining Length: Approximately 205 mm (8 in) with Guide Bushing
Main Spindle Speed: Up to 10,000 RPM
Main Spindle Motor: Approximately 5 HP (3.7 kW)
Sub Spindle Speed: Up to 10,000 RPM
Sub Spindle Motor: Approximately 2.7 HP (2.0 kW)
Positioning Accuracy: ±0.002 mm (±0.00008 in)
Repeatability: ±0.001 mm (±0.00004 in)
Electrical: 208–230 V / 3 Phase / 60 Hz

Equipment
LNS Turbo MH250 Automatic Chip Conveyor
Edge Technologies Minuteman 320 SE Bar Loading Magazine
(2) Guide Channel Sets
(2) Telescoping Noses
(1) OD Bar Stock Collet
Swiss Headstock Synchronization Device
Auto Remnant Retraction
Self-Centering Gripper
(2) Pushers
(2) Pusher Collets
(1) Spindle Liner
Low Hours on Spindle
Full Manuals
Parts Ejector Guide Bushing
Air Purge for Revolving Guide Brush
