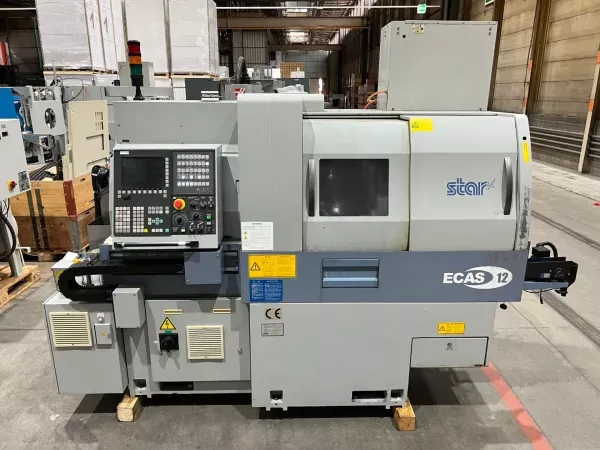

Star CNC CONTROL 12,000 rpm ECAS 12 8 Axis

Maximum machining diameter: 13 mm
Max. headstock stroke: 205 mm
Maximum drilling capability (stationary tool): 10 mm
Maximum drilling capability (power-driven tool): 8 mm
Maximum tapping capability (stationary tool): M8 x P1.25
Maximum tapping capability (power-driven tool): M6 x P1.0
Maximum milling capability: 10 mm
Maximum die cutting capability: M8 x P1.25
Maximum slotting capability: 1.5 x 4 mm
Feed rate (Z1, X1, Y1, Z2, X2, Z3, X3, Y3): 18,000 mm/min
Feed rate (C1, C2): 194,400°/min
Turning feed rate (Z1, X1, Y1, Z2, X2, Z3, X3, Y3): 18,000 mm/min
Turning feed rate (C1, C2): 194,400°/min
Minimum input increment (X1, X2, X3): 0.001 mm
Minimum input increment (Z1, Z2, Z3, Y1, Y3): 0.001 mm
Minimum input increment (C1, C2): 0.001°
Spindle speed: 12,000 rpm
Indexing angle: 0.01°
Machine dimensions: 2588 x 1150 x 1765 mm
Center height: 1040 mm
Machine weight: 3500 kg
Coolant tank / pump
High-pressure system
Transformer
Operational documentation
