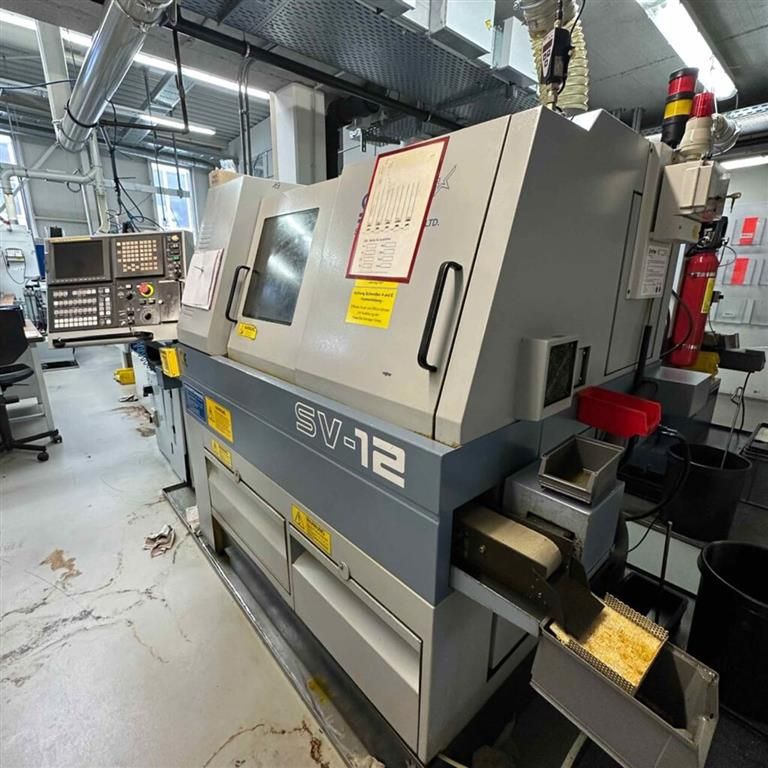

Star CNC CONTROL 12000rpm MICRONICS SV 12 9 Axis

Number of axes: 9
Main spindle speed: 12000rpm
Sub spindle speed: 12000rpm
Main spindle C axis
Sub spindle C axis
Tool holder: 4-position
Turret stations: 8

Maximum tool quantity turning: 29
Maximum driven tools: 19
Power requirement: 9.0kVA
Tank capacity: 170l

Machine dimensions: 2700 x 1400 x 1700mm
Machine weight: 1700kg
Bar feeder dimensions: 4300 x 600 x 1800mm
Bar feeder weight: 700kg

Peripheral HD system dimensions: 1500 x 500 x 1000mm
Peripheral HD system weight: 250kg
Peripheral accessories dimensions: 1200 x 800 x 1000mm
Peripheral accessories weight: 200kg

CNC long turning machine
Sub spindle
Collet on sub spindle
Various tool holders
Quills
Fire extinguishing system
High pressure system SF-Systeme Büchele SHD 150 150bar 2 x 40µm 3 valves
Parts conveyor
Operating manuals
Operating tools
Bar magazine FMB Turbo 2-16 3200A bar Ø2 to Ø20mm
Coolant medium oil
