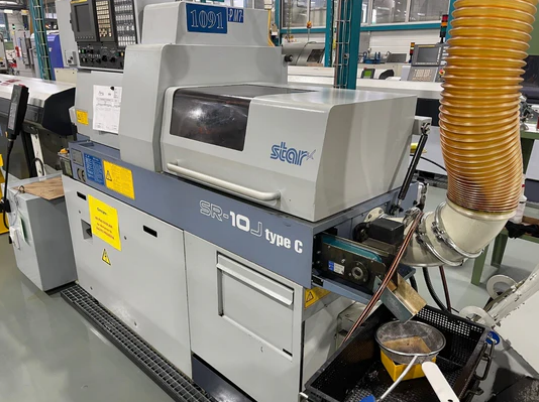

Star FANUC Series 18i-TB 15000 rpm SR-10 J type C 7 Axis

Rapid Traverse: 35 m/min
7 Axes
2 Spindles
C Axis on Main Spindle
C Axis on Back Spindle
Control: FANUC Series 18i-TB
Max Machining Diameter: 10 mm
Max Turning Length: 135 mm
Main Spindle Speed Range: 1–15000 rpm
Main Spindle Power: 3.7 kW
Back Spindle Speed Range: 1–10000 rpm
Back Spindle Power: 1.1 kW
Driven Tool Speed Range: 250–8000 rpm
Number of Tool Stations: 13
Turning Tools: 6
Drilling Tools: 4
Cross Tools: 3
Counter-Operation Drilling Tools: 8
Voltage: 400 V
Frequency: 50 Hz
3 Phase Power Supply
Total Power Required: 3 kVA
Bar Feeder: LNS EXPRESS 220
Chip Conveyor: LNS TURBO MH 500
Lamp
Status Light
Machine Length: 2000 mm
Machine Width: 820 mm
Machine Height: 1800 mm
Machine Weight: 1400 kg
