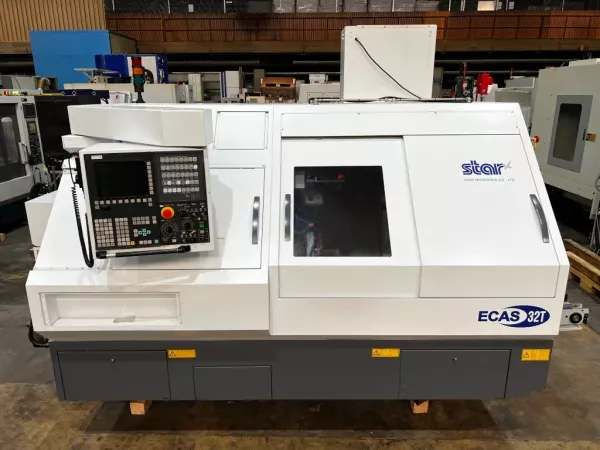

Star CNC CONTROL 7000 rpm ECAS 32 T CNC automatic lathe 2 Axis

Max. machining diameter: 32 mm
Max. headstock stroke: 350 mm
First turret: 10 stations
Second turret: 10 stations
Number of turning tools: max. 2 tools per station
Tool shank: 16 mm
Sleeve holder tools per station: max. 3
Max. drilling capacity (sleeve holder): 23 mm
Max. tapping capacity (sleeve holder): M12 x P1.75
Max. die cutting capacity (sleeve holder): M12 x P1.75
Power-driven attachment tools per station: max. 2
Max. drilling capacity (PDA): 10 mm
Max. tapping capacity (PDA): M8 x P1.25
Max. milling capacity (PDA): 12 mm
Max. slotting capacity (PDA): 2 mm x 10 mm
Main spindle indexing degree: 0.01°
Main spindle speed: 7000 rpm
Power-driven attachment spindle speed: 5700 rpm
Coolant tank capacity: 230 l
Machine dimensions: 3175 x 1745 x 1860 mm
Center height: 1084 mm
Machine weight: 5700 kg
Power consumption: 8.0 kVA
