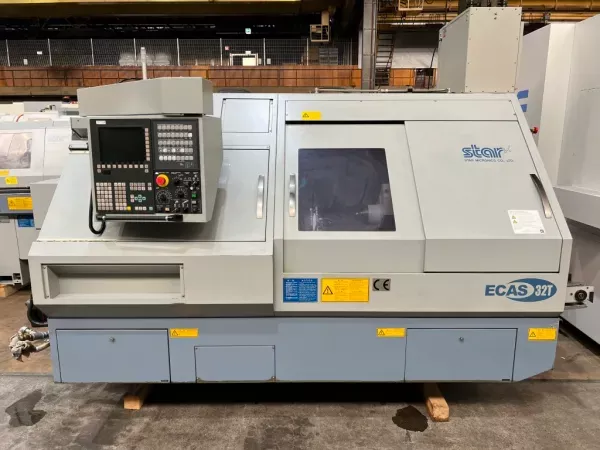

Star CNC CONTROL 7000 rpm ECAS-32T 2 Axis

Max machining diameter: 32 mm
Max headstock stroke: 350 mm
First turret: 10 stations
Second turret: 10 stations
Number of turning tools: Max 2 tools per station
Tool shank: 16 mm
Sleeve holder number of tools: Max 3 tools per station
Max drilling capacity (sleeve holder): 23 mm
Max tapping capacity (sleeve holder): M12 x P1.75
Max die cutting capacity (sleeve holder): M12 x P1.75
Power driven attachment number of tools: Max 2 tools per station
Max drilling capacity (power driven attachment): 10 mm
Max tapping capacity (power driven attachment): M8 x P1.25
Max milling capacity (power driven attachment): 12 mm
Max slotting capacity (power driven attachment): 2 mm x 10 mm
Main spindle indexing: 0.01°
Main spindle speed: 7000 rpm
Power driven attachment spindle speed: 5700 rpm
Coolant tank capacity: 230 l
Center height: 1084 mm
Machine dimensions: 3175 x 1745 x 1860 mm
Machine weight: 5700 kg
Power consumption: 8.0 KVA

Barload bar loader
Siemens fire extinguishing system
Tool holder set
Chip tray and coolant pump
High-pressure pump
Transformer
