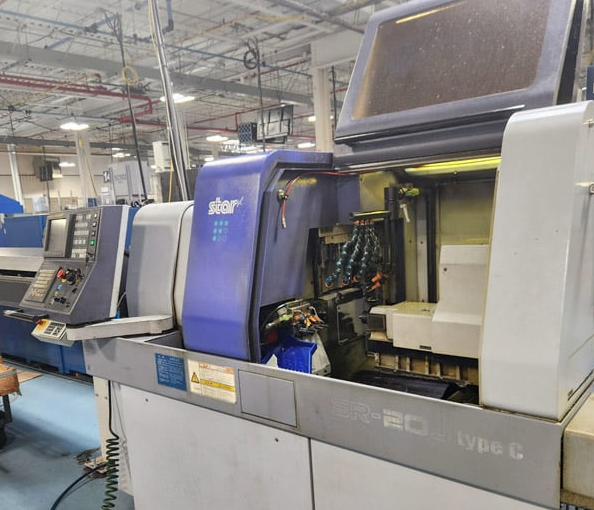

Star CNC CONTROL 8,000 RPM SR-20J Type C 2 Axis

Max Machining Diameter Ø20 mm
Max Headstock Stroke Standard 205 mm
Max Headstock Stroke with RMGB Unit 172 mm
Number of Tools Front 4
Number of Tools Rear 4
4-Spindle Sleeve Holder
Max Drilling Capability Front 10 mm
Max Tapping Capability Front M8×P1.25
2-Spindle Front Sleeve Holder
Number of Tools 2
Max Drilling Capability 8 mm
Max Depth of Hole 100 mm
Power Driven Attachment
Number of Tools 3
Cross Milling Cartridge Type 2 Position
Max Drilling Capability 8 mm
Max Tapping Capability M6×P1.0
Spindle Speed Max 8,000 RPM
Motor 1.2 kW
Rapid Feed Rate 1377 IPM / 35 m/min
Main Spindle Indexing Angle C-Axis Control
Main Spindle Speed Max 10,000 RPM
Main Spindle Motor 3 HP Continuous / 5 HP 15 min
Dimensions 88″ x 47″ x 67″
Weight 2,200 kg
Backworking Attachment Max Chucking Diameter Ø20 mm
Max Length for Front Ejection 80 mm
Max Work Projection Length 30 mm
Back 4-Spindle Unit Number of Tools 4
Max Drilling Capability Stationary Tool Ø8 mm
Max Drilling Capability Power Driven Tool Ø5 mm
Max Tapping Capability Stationary Tool M8×P1.25
Max Tapping Capability Power Driven Tool M4×P0.7
Power Driven Attachment Spindle Speed 8,000 RPM
Power Driven Attachment Drive Motor 0.5 kW
Sub Spindle Indexing Angle C-Axis Control
Sub Spindle Speed Max 8,000 RPM
Sub Spindle Motor 1.5 kW Continuous / 2.2 kW 15 min
Control Fanuc Series 18i-TB CNC
Parts Catcher with Exit Conveyor
Fire System Pressure Switch
Edge Technologies FMB Turbo 2-20 / 3800 Barfeed
