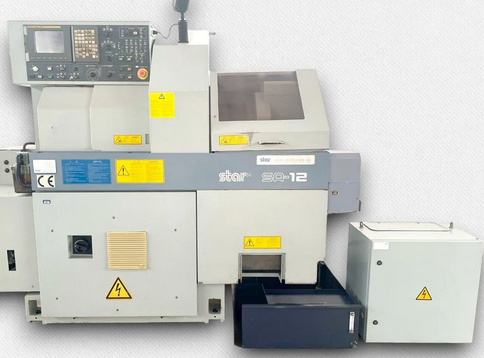

Star CNC CONTROL 8,000 t/min SA-12 4 Axis

CNC automatic lathe
# Axis Total: 4
# Spindles: 2
Max Turning Diameter: 16 mm
Max Drilling Diameter: 7 mm
Max Threading Diameter: 6 M
Spindle Speeds: Stepless 500–12,000 t/min
Spindle Power: 2.2 / 3.7 kW
C-Axis Resolution: 15°
Back Spindle Speeds: 500–8,000 t/min
Max Tapping Length Back Spindle: 85 mm
Thread Drill Diameter Back Spindle: 3 M
Back Machining Workpiece Length Max: 85 mm
Turning Tool Holders: 6 pcs
Drilling Tool Holders: 2 pcs
Driven Tool Speeds: 4,000 t/min
Counter-Operation Tool Number: 4
Rapid Traverse: 18 m/min
Cutting Speed: 10,000 mm/min
Voltage: 3x400 V 50 Hz
Back Spindle Motor Power: 0.5 kW
Air Connect: 5 bar
Total Power Required: 6 kVA
Machine Weight: ≈1,700 kg
Machine Dimensions L×W×H: 2,090 × 770 × 1,660 mm
Accessories: Workpiece Conveyor
Accessories: Lamp
Accessories: Coolant System 80 l
Accessories: RS232 Interface
