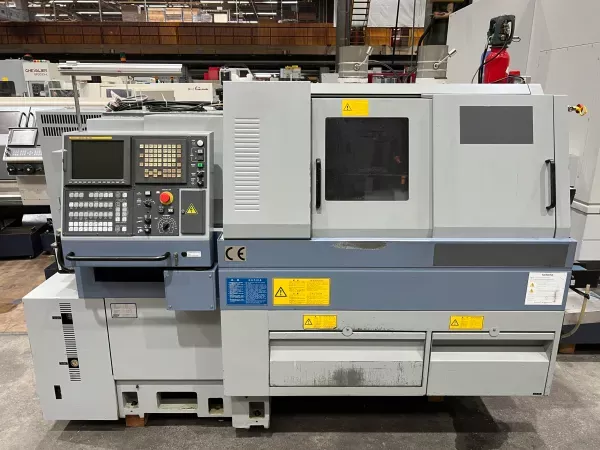

Star CNC CONTROL Variable Speed SV-20 6 Axis

X, Y rapid feed: 15,000 mm/min
A, B rapid feed: 15,000 mm/min
Z1, Z2, E rapid feed: 18,000 mm/min
C1, C2 rapid feed: 90,000°/min (250 min⁻¹)
X, Y max feed: 10,000 mm/min
A, B max feed: 10,000 mm/min
Z1, Z2, E max feed: 10,000 mm/min
C1, C2 max feed: 10,000 mm/min

Minimum input X, Y: 0.001 mm / 0.0001 in
Minimum input A, B: 0.001 mm / 0.0001 in
Minimum input Z1, Z2, E: 0.001 mm / 0.0001 in
Minimum input C1, C2: 0.001°
Maximum turning diameter: Ø20 mm (25/32 in)

Spindle stock stroke (Z1) standard: 205 mm (8 in)
Spindle stock stroke with guide bushing: 195 mm

Max drilling with fixed tool: Ø14 mm (35/64 in)
Max drilling with driven tool: Ø8 mm
Max threading with fixed tool: M10×P1.5
Max threading with driven tool: M6×P1.0
Max milling: Ø10 mm (25/64 in)
Max threading cut: M10×P1.5
Max slotting: 2 mm width × 6 mm depth

Operation: right-hand machining station
Configuration: integrated mechanical/electrical setup
Dimensions (L×W×H): 2670 × 1375 × 1650 mm
Spindle height: 1070 mm
Weight: 3400 kg
Main spindle speed: max 10,000 min⁻¹
Spindle control: S-command + direct 5-digit command
Main spindle motor: 3.7 kW continuous / 5.5 kW (30 min/50% ED)
Indexing: C-axis control
Tool carrier type: tool carrier + 8-station horizontal turret
Tool carrier tools: 4 tools Ø16 mm (5/8 in) 95–135 mm, 5 tools Ø12 mm (1/2 in) 95–135 mm, 1 tool Ø16 mm (5/8 in) 65–70 mm
Turret tools: 3 tools per station Ø12 mm (1/2 in) 70–78 mm

Driven tools on tool carrier: 3
Driven tools on turret: 8 stations
Driven tool speed: approx. 6000 rpm
Driven tool motor power: 0.5 and 2.8 kW

Sub spindle max chuck diameter: Ø20 mm (25/32 in)
Sub spindle max part length: 150 mm (5-7/8 in)
Sub spindle travel: 75 mm
Sub spindle push-out length: 75 mm
Sub spindle speed: max 10,000 min⁻¹
Sub spindle drive: AC servo motor
Sub spindle max drilling: Ø10 mm (25/64 in)
Sub spindle max threading: M8×P1.25

Includes: STAR SV-20 CNC automatic lathe
Includes: fire suppression system
Includes: coolant tank
Includes: LNS Express-220 bar feeder
Includes: high-pressure pump
Includes: transformer
Includes: machine accessories
Includes: bar feeder accessories
Includes: complete operating documentation
