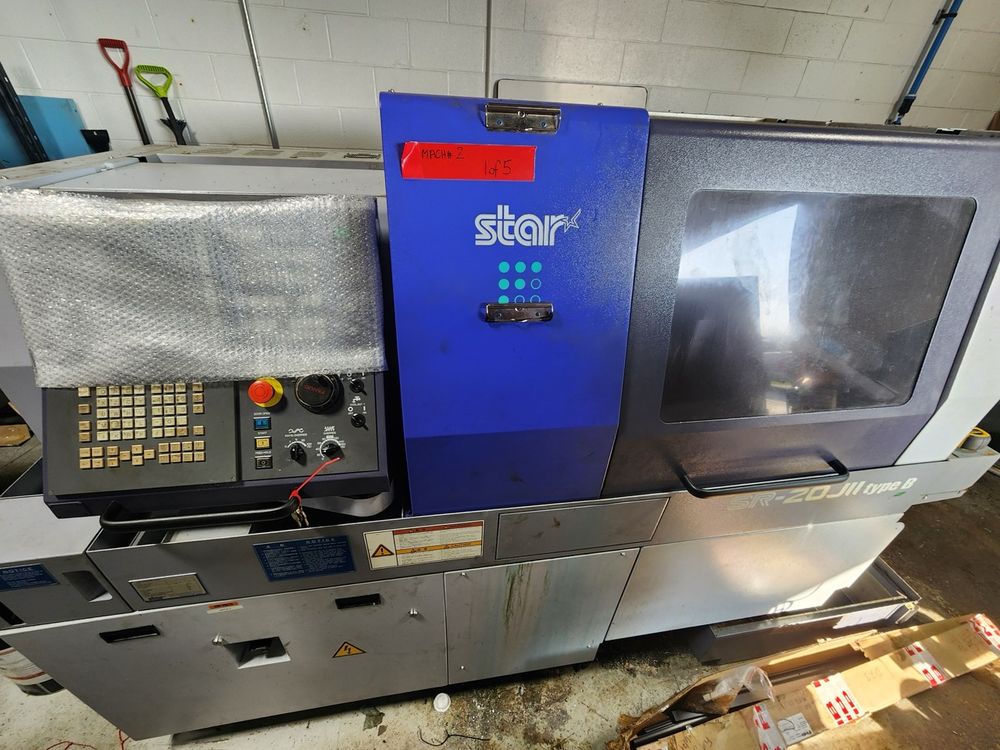

Star ControlFanuc 31i-B CNC 10,000 RPM SR-20JIII 8 Axis

X1-axis travel
Y1-axis travel
Z1-axis travel
C1-axis rotation

X2-axis travel
Y2-axis travel
Z2-axis travel
C2-axis rotation

ControlFanuc 31i-B CNC
Max bar capacity0.787 in (20 mm)
Max turning length (per chuck)8 in (203 mm)
Main spindle speedUp to 10,000 RPM
Sub spindle speedUp to 8,000 RPM
Main spindle motor2.2 / 3.7 kW (3 / 5 HP)
Sub spindle motor1.5 / 2.2 kW (2 / 3 HP)
Live tool speedUp to 8,000 RPM
Cross-drilling spindlesUp to 6 stations
Back-working toolsUp to 8 stations (drilling, milling, tapping)
Tool positionsTotal ≈ 27
Coolant systemHigh-pressure coolant ready (1,000 psi optional)
Bar feederFMB Loader
Chip conveyorLNS Turbo HB
Dimensions (L × W × H)≈ 90″ × 55″ × 65″
Weight≈ 5,500 lb (2,500 kg)
