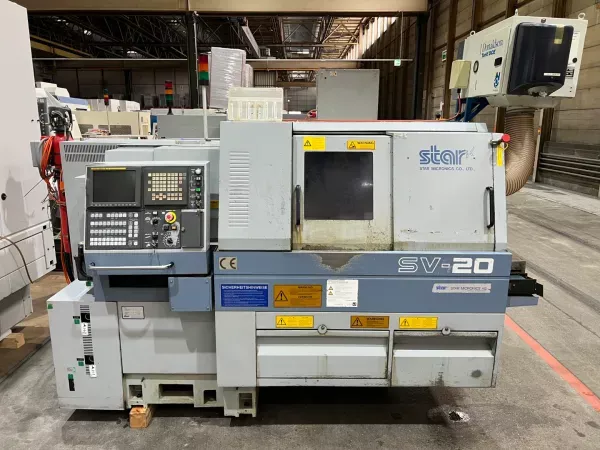

Star Fanuc 10000 rpm SV-20 CNC SWISS-TYPE LATHE 2 Axis

Rapid feed X,Y 15000 mm/min
Rapid feed A,B 15000 mm/min
Rapid feed Z1,Z2,E 18000 mm/min
Rapid feed C 90000°/min
Smallest input unit 0.001 mm
Smallest input unit, C-axis 0.001°

Max. turning diameter 20 mm
Max. headstock stroke 205 mm
Max. drilling capacity stationary 14 mm
Max. drilling capacity driven 8 mm
Max. thread cutting capacity stationary M10 x P1.5
Max. thread cutting capacity driven M6 x P1.0

Spindle speed 500–10000 rpm
Main spindle drive Spindle drive
Main spindle motor 3.7 / 5.5 kW
Main spindle bore 26 mm

Max. clamping diameter pick-up spindle 20 mm
Max. part length for forward ejection 150 mm
Max. extension length 75 mm

Pick-up spindle speed 500–10000 rpm
Pick-off spindle motor 2.2 / 3.7 kW
Indexing angle 1°, 15°
Operation mode Right-handed
Dimensions 2700 x 1400 x 2400 mm
Weight 3400 kg
Control Fanuc
Fire extinguishing system Siemens
Oil mist separator Donaldson
Transformer
Hydraulic unit
Parts conveyor
Chip conveyor
Bar loader LNS
Tool holder
