Star Fanuc 16T CNC Control 7,000 RPM SR-32 7 Axis

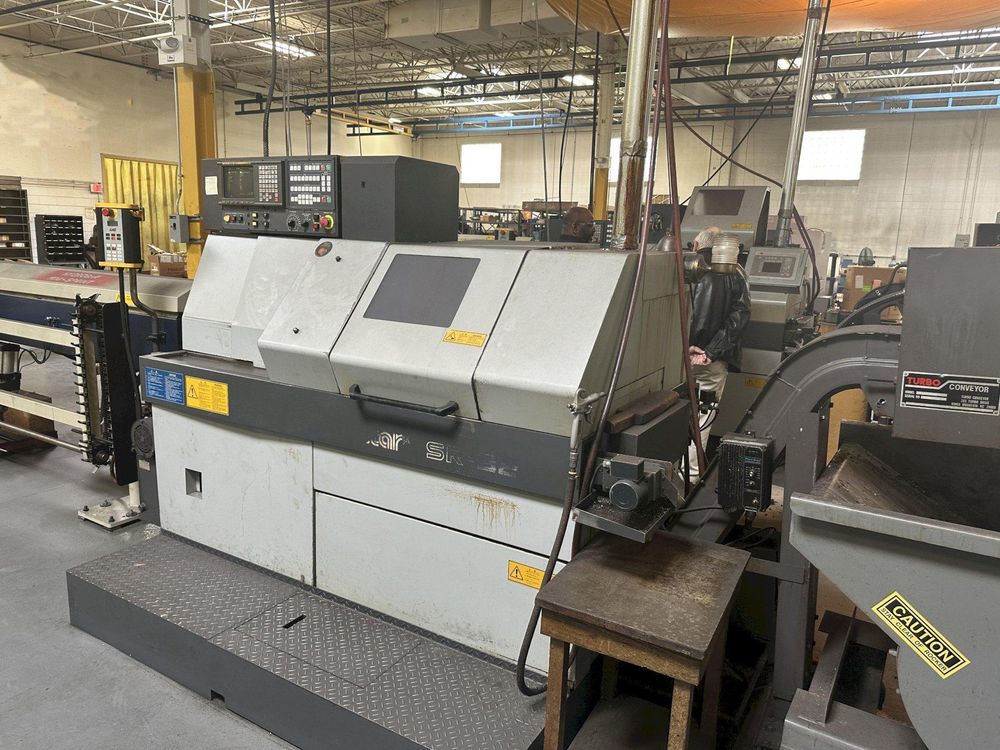

STAR SR-32
Year 1996

CNC Control yes
Type of CNC Control Fanuc 16T CNC Control
# Axis 7
Axis Designation X, Y, Z, ZB, XB, C1, C2
Max Turning Diameter 1.25"
Z-Axis (Headstock Travel) 12-13/64"
C1-Axis (Min Indexable) 0.01°
C2-Axis (Min Indexable) 1°
Main Spindle Center Height 42.13"
Max Main Spindle Speed 7,000 RPM
Rapid Traverse Rate (X, Y, Z, ZB, XB) 945 IPM
Main Spindle Stroke (one chucking) 1-1/41"
Max Sub-Spindle Speed 7,000 RPM
Max Drilling Diameter (Front Tool) 5/16"
Max Tapping Diameter (Front Tool) M6xP1.0
Max Milling Diameter (Cross Tool) 25/64"
Max Slotting (Cross Tool) .08" W x .14" D
Toolpost Type Slant
# Tools: OD 6
# Tools: Front Working ID 4
# Tools: Back Working 4
# Tools: Cross Driven 3
Main Spindle Motor 7.4 HP
Sub-Spindle Motor (Cont./15 Mins.) 2.95 / 4.96 HP
Coolant Pump Motor 0.33 HP
Electrics 200/3/60
Approximate Machine Dimensions 106" x 51"
Approximate Machine Height 69"
Approximate Machine Weight 8,300 LBS
