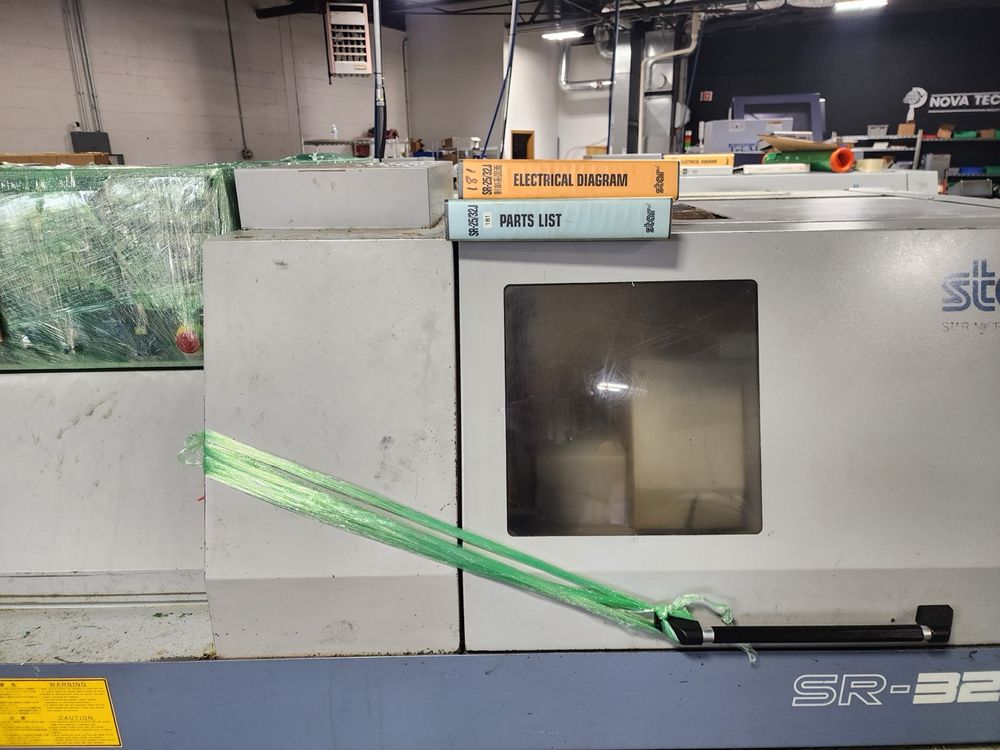

Star Fanuc 18i-TB CNC 8,000 RPM ST-32J 7 Axis

X1-Axis Travel
Y1-Axis Travel
Z1-Axis Travel
C1-Axis
X2-Axis Travel
Z2-Axis Travel
C2-Axis
Optional Y2-Axis

Control: Fanuc 18i-TB CNC
Bar Capacity: 32 mm (1.26 in)
Max Turning Length: 320 mm (12.6 in)
Main Spindle Speed: Up to 8,000 RPM
Sub Spindle Speed: Up to 8,000 RPM
Main Spindle Motor: 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor: 3.7 kW (5 HP)
Live Tool Speed: Up to 5,000 RPM
Tool Capacity: Approx. 28 total positions
Cross-Drilling Stations: 6 front + 4 rear live tools
Back-Working Tools: 8 stations (drilling, tapping, milling)
Coolant System: Flood coolant (high-pressure option available)
Bar Feeder Compatibility: FMB
Dimensions (L × W × H): ≈ 100″ × 55″ × 65″
Approx. Weight: ≈ 6,500 lb
