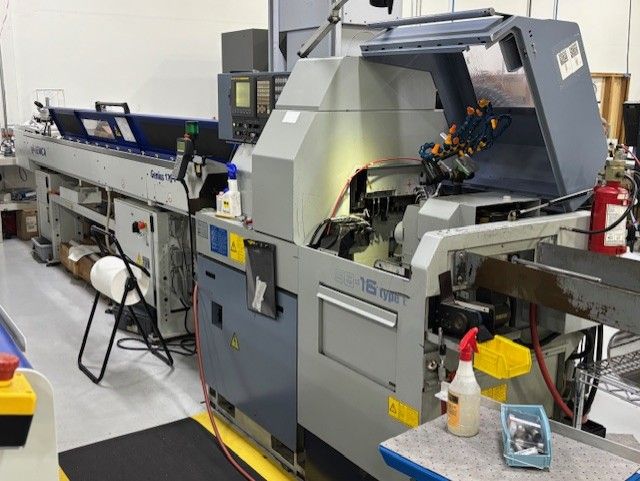

Star Fanuc 18iTB 10,000 rpm SB-16E CNC Swiss Type Lathe 2 Axis

Max. Machining Diameter 5/8"
Max. Headstock Stroke Std 8"
Max. Headstock Stroke Revolving Guide Bushing 6 3/32"
Control Fanuc 18iTB
Tooling 3 Live/6 OD (2 Live/6 OD alt)
Tooling 4 ID
Tooling 4+4 Backworking
Main Spindle Max Speed 10,000 rpm
Main Spindle Motor 2.2 kW / 3.7 kW
Main Spindle Indexing C-axis (15 deg opt)
Max. Drilling Capacity (end) 10 mm (25/64")
Max. Tapping Capacity (end) M8 x P1.25
Max Cross Drilling Capacity 6 mm (15/64")
Max. Cross Tapping Capacity M5 x P.08
Live Tools Max Speed 7,500 rpm
Live Tools Motor 0.4 kW
Sub-Spindle Max Diameter 5/8"
Sub-Spindle Max Length for Ejection 3 5/32"
Sub-Spindle Max Parts Projection Length 1 3/16"
Sub-Spindle Max Speed 9,000 rpm
Sub-Spindle Motor 1.0 kW
Sub-Spindle Max Drilling Capacity 8 mm (5/16")
Sub-Spindle Max Tapping Capacity M6 x P1.0
Machine Dimensions (L x W x H) 6' x 3.5' x 5.75'
Machine Weight 4,000 lbs
Iemca Genius 120 Magazine Barfeed
New England Tool Corp. High Pressure Coolant
