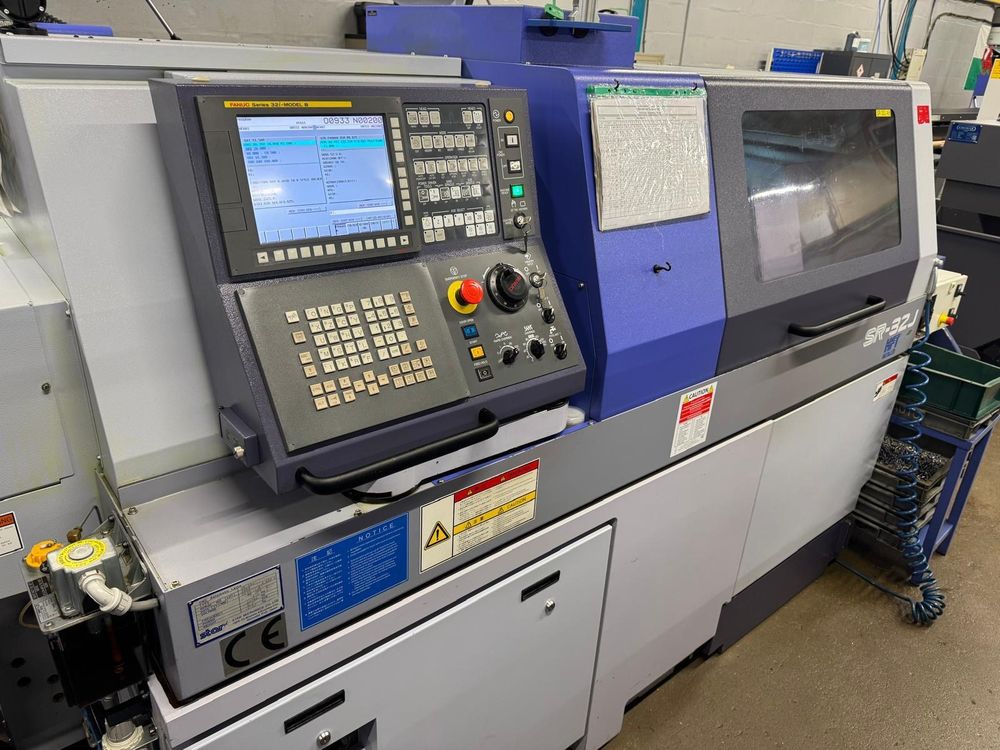

Star FANUC 32i-TB 7000 rpm SR-32J 3 Axis

Rapid Feedrate – 24 m/min
C Axis – 0.001°
Sub Spindle C Axis – 0.001°
Control – FANUC 32i-TB
C Axis on Sub Spindle
C Axis & Milling
Coolant
HFT Function
Interlocked Guards
Low Volt Light
Magazine Barfeed
Parts Conveyor
Sub Spindle
Swarf Conveyor
Tooling
Y Axis
Bar Capacity – 32 mm
Spindle Power – 7.5/5.5 kW
Spindle Speed – 7000 rpm
Sub Spindle Speed – 7000 rpm
Sub Spindle Motor – 3.7 kW
Maximum Cutting Diameter – 32 mm
Maximum Cutting Length – 310 mm
Maximum Drilling Diameter – 13 mm
Maximum Tapping Capacity – M12 (M6 with driven tool)
Milling Motor Power – 1.2 kW
Milling Speed – 5000 rpm
Tool Capacity – 6 + 4 + 4 + 5 + 4
Barfeed – FMB Turbo 3-36/3200
Number of Controlled Axes – 7 (Z, ZB, X, XB, C1, C2, Y)
Machine Dimensions – 2711 x 1275 x 1705 mm
Machine Weight – 3100 kg
