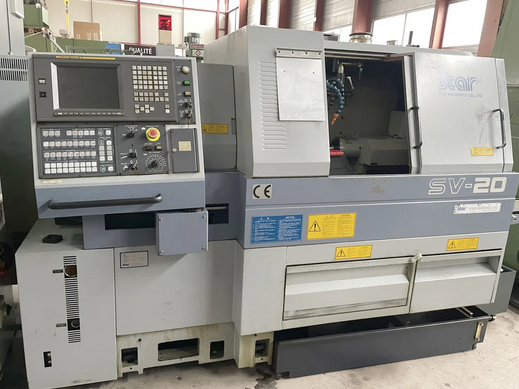

Star Fanuc Series 16-T 10,000 RPM SV-20 2 Axis

Max Turning Diameter: 20 mm
Max Turning Length: 205 mm
Spindle Bore: 26 mm
Number of Axes: 9
Number of Spindles: 2
Control: Fanuc Series 16-T
Bar Feeder: LNS MINI-SPRINT S2
Coolant System: 170 L
Parts Catcher
Workpiece Conveyor
Work Light
Blow-off Device
Set of Toolholders
Spindle Speed: 50–10,000 RPM
Back Spindle Speed: 500–10,000 RPM
Turret Positions: 8
Driven Tools (Turret): 8
Driven Tool Speed: 400–6,000 RPM
Driven Tool Power: 1 kW
Tool Holder: 5 positions
Driven Tools (Tool Holder): 3
Tool Holder Speed: 6,000 RPM
Driven Tool Power: 0.5 kW
Max Drilling Diameter: 14 mm
Rapid Traverse (X/Y/Z): 15 / 15 / 18 m/min
Feedrate: up to 10,000 mm/min
Spindle Motor: 3.7 kW
Back Spindle Power: 2.2 / 3.7 kW
Air Requirement: 5 bar
Total Power: 9 kVA
Machine Weight: 3,400 kg
Machine Dimensions: 2670 x 1375 x 1650 mm
