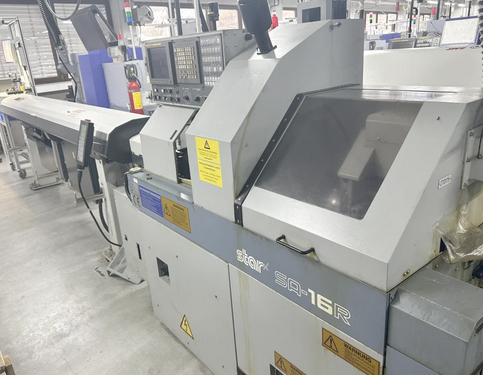

Star FANUC Series 18i-T 12,000 rpm SA-16 RC 2 Axis

Rapid traverse: 20 m/min
Cutting speed: 10,000 mm/min
Back machining workpiece length max.: 85 mm
CNC control: FANUC Series 18i-T
Power supply: 400 V / 50 Hz / 3-phase
Air connection: 5 bar
Total connected load: 6 kVA
Bar diameter capacity: 2–20 mm
Maximum bar length: 3,200 mm
Maximum turning diameter: 16 mm
Main spindle speed range: 500–12,000 rpm
Main spindle motor power: 2.2 / 3.7 kW
Sub-spindle speed range: 500–9,000 rpm
Sub-spindle motor power: 1.1 / 0.5 kW
Maximum drilling diameter (main spindle): 7 mm
Maximum threading capacity (main spindle): M6
Driven tool speed: 7,500 rpm
Driven tool motor power: 0.4 kW
Maximum drilling diameter (driven tools): 4 mm
Maximum threading capacity (driven tools): M3
Number of turning tools: 6
Number of drilling tools: 4
Number of cross working tools: 3
Number of counter-operation tools: 4
Tool shank cross-section: 10 mm
Internal taper type: ER11
Overall length: 2,090 mm
Overall width: 770 mm
Overall height: 1,660 mm
Machine weight: 1,700 kg
Bar feeder
Parts catcher
Workpiece conveyor
High-pressure coolant device
Coolant system capacity: 80 L
Set of collets
Set of toolholders
Machine lamp
Fire extinguishing system (without bottle)
