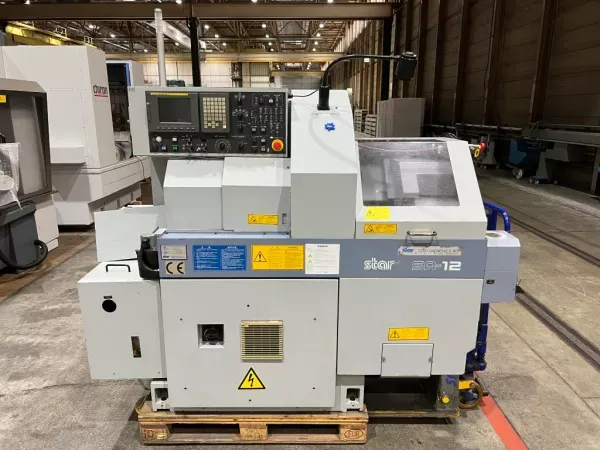

Star Fanuc Series 18i-T 12000 rpm SA-12 4 Axis

Rapid feed (X, Y, Z, ZB): 370 mm
Maximum rotary feed (X, Y, Z, ZB): 270 mm
Smallest input unit (X, Y, Z, ZB): 120 mm
Control: Fanuc Series 18i-T
Maximum turning diameter: 13 mm
Maximum headstock stroke: 140 mm
Maximum drilling capacity: 7 mm
Maximum tapping capacity: 7 mm
Maximum thread cutting performance: M6 x P1.0
Main spindle speed: 500–12000 rpm
Main spindle motor: 2.2 / 3.7 kW
Main spindle indexing angle: 1° or 15°
Main spindle bore: 20 mm
Tool slide type: Linear slide
Number of tools: 6 tools
Number of driven tools: 3 tools (collet ER 11)
Driven tools spindle speed: 1970 / 2330 rpm
Driven tools max drilling capacity: 4 mm
Driven tools max milling capacity: 4 mm
Pick-off spindle max clamping diameter: 13 mm
Pick-off spindle max part length forward ejection: 85 mm
Pick-off spindle max extension length: 30 mm
Pick-off spindle speed: 500–8000 rpm
Pick-off spindle motor: 0.5 kW
Pick-off spindle selecting the tools: 4 tools
Pick-off spindle max drilling capacity: 4 mm
Pick-off spindle max tapping capacity: M3 x P0.5
Power supply voltage: 3 phases 200/220 V
Power supply frequency: 50/60 Hz
Power supply performance average: 6.0 KVA

Fire extinguishing system
Coolant tank
Transformer
LNS bar loader
