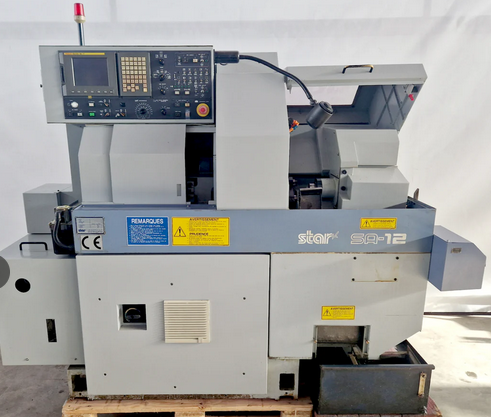

Star FANUC Series 18i-T CNC 12,000 t/min (stepless) SA-12 4 Axis

Number of axes total: 4
Number of spindles: 2
Max turning diameter: 16 mm
Max drilling diameter: 7 mm
Max threading diameter: 6 M
Spindle speed: 500–12,000 t/min (stepless)
Spindle power: 2.2 kW
C-axis resolution: 15°
Back spindle speed: 500–8,000 t/min
Max tapping length (back spindle): 85 mm
Max back machining length: 85 mm
Turning tools: 6
Drilling tools: 2
Counter-operation tools: 4
Rapid traverse: 18 m/min
Cutting speed: 10,000 mm/min
Control: FANUC Series 18i-T CNC
Spindle motor: 2.2 / 3.7 kW
Back spindle power: 0.5 kW
Air supply: 5 bar
Total power: 6 kVA
Coolant system: 80 L
Lamp
Voltage: 3×400 V, 50 Hz
Machine weight: 1700 kg
Dimensions: 2090 × 770 × 1660 mm
