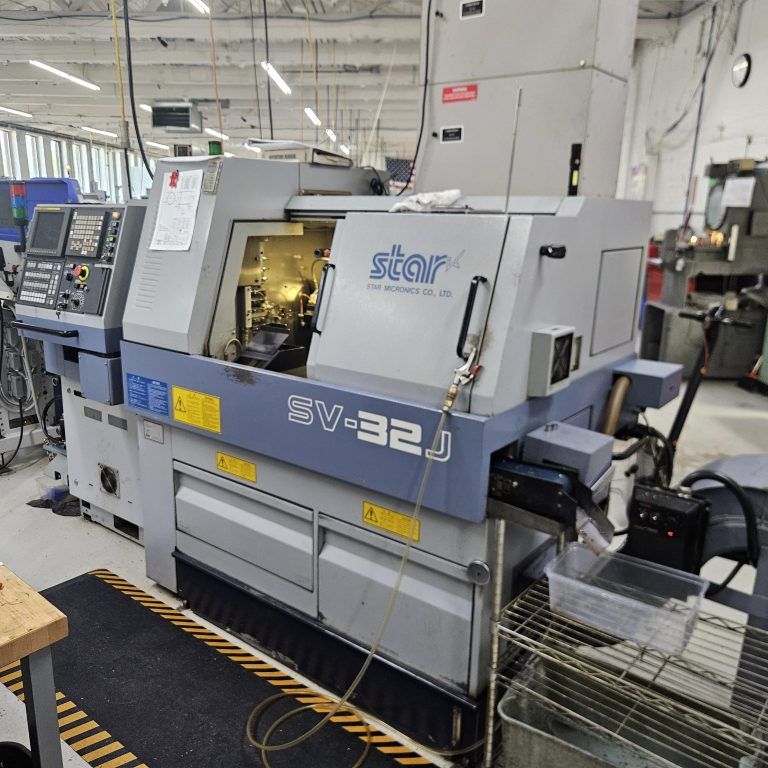

Star FANUC Series 18i-TA 7,000 RPM CNC SV-32J 2 Axis

Max Machining Diameter: 32 mm (1.25″)
Max Headstock Stroke: 310 mm (12.2″)
Main Spindle Speed: 7,000 RPM
Main Spindle Motor: 5.5 kW continuous / 7.5 kW (30 min)
Sub-Spindle Speed: 7,000 RPM
Live Tool Speed: up to 6,000 RPM
Max Drilling Capacity: 19 mm
Max Tapping Capacity: M12 × P1.75
CNC Control: FANUC Series 18i-TA
Tool Post Configuration: Gang-type tooling with optional 8-station turret
Coolant Tank Capacity: 170 L
Machine Weight: approx. 3,200 kg (7,055 lbs)
Bar Feeder: IEMCA BOSS 432/37 included
Mist Collector: MistBuster included
Machining Capability: simultaneous front and backworking
Operations: cross milling, off-center drilling, rigid tapping supported
Structure: heavy-duty Swiss-type platform
Application: large diameter Swiss machining, long production runs
