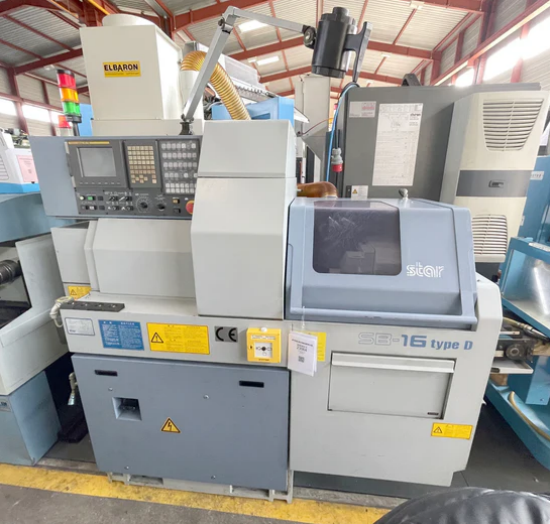

Star FANUC Series 18i-TB 10000 t/min SB 16 D 2 Axis

Rapid Traverse: 35 m/min
C Axis Resolution: 15°
Control: FANUC Series 18i-TB
Bar Diameter: 2–20 mm
Max Turning Diameter: 16 mm
Turning Length: 155 / 205 mm
Max Drilling Diameter: 10 mm
Max Threading Diameter: 8 M
Number of Tools: 6
Number of Driven Tools: 3
Spindle Speed: 500–10000 t/min
Driven Tool Speed: 5000 t/min
Back Spindle Speed: up to 8000 t/min
Thread Drill Diameter Back Spindle: 6 M
Back Machining Workpiece Length Max: 80 mm
Spindle Motor Power: 2.2 / 3.7 kW
Machine Weight: ≈1600 kg
Machine Length: 1900 mm
Machine Width: 1100 mm
Machine Height: 1800 mm
Bar Length Max: 3200 mm

LNS HYDROBAR EXPRESS 220 bar feeder
ELBARON oil-mist extractor
Fire extinguishing system
Lamp
Status light
Workpiece conveyor
Parts catcher
