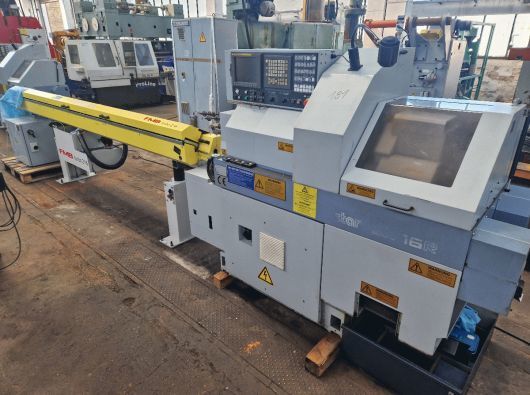

Star Fanuc Series 18i-TB 12,000 rpm SA-16RC

Star SA-16RC
Year of manufacture: 2005/5

Control type: Fanuc Series 18i-TB
Number of spindles: 2
Maximum turning diameter: 16 mm
Maximum drilling diameter: 7 mm
Maximum thread diameter: M 6 (metric)
Spindle speeds: Continuously variable from 500 rpm to 12,000 rpm
Spindle power: 2.2 kW
Counter spindle speeds: from 500 rpm to 9,000 rpm
Tapping diameter: M 6 (metric)
Workpiece length at Counter-machining diameter: 85 mm
Speed ​​of driven tools: 7500 rpm
Power of rotating tools: 0.4 kW
Drill diameter: max. 4 mm
Tapping diameter: M 3 ​​(metric)
Tool shank cross-section: 10 mm
Collet chuck type: ER 11
Rapid traverse: 20 m/min
Cutting speed: 10000 mm/min
Power supply: 50 Hz 3x 400 volts
Spindle motor: 2.2 / 3.7 kW
Counter-spindle power: 1.1 / 0.5 kW
Compressed air connection: 5 bar
Total power requirement: 6 kVA
Machine weight approx.: 1700 kg
Bar length for the bar feeder: 3200 mm
