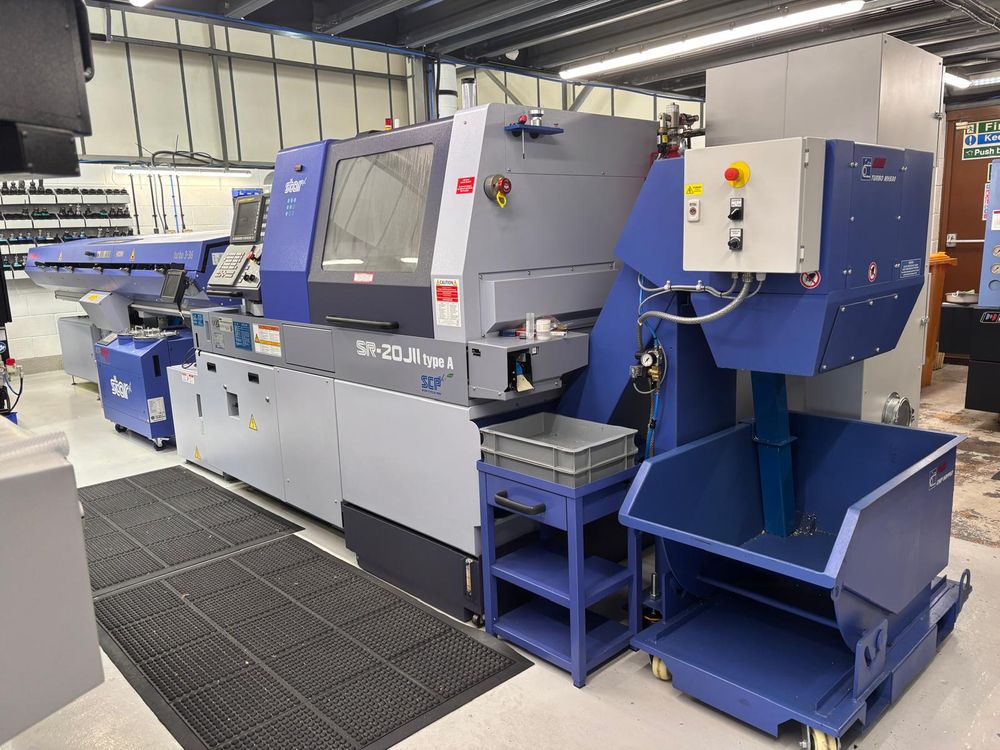

Star FANUC 32i-B 8,000 RPM SR20J11 Type A 5 Axis

Rapid Feed Rate 35 m/min (X1, X2, Y1, Z1, Z2)
C Axis Main spindle indexing angle
Control FANUC 32i-B
Coolant Tank Capacity 202 L
High Pressure Coolant UB20-2000-HT Hydrajet
Mist Extractor Absolant
Bar Feeder FMB 3–36 mm x 3000 mm
Fire Suppression System Firetrace automatic
Tooling System JBS collet system
Max Machining Diameter 20 mm
Max Headstock Stroke 205 mm
R.M.G.B. Type Stroke 160 mm
N.G.B. Type Bar Diameter 2.5 mm
Number of Tools (Tool) 6
Tool Shank Size 12 mm
5-Spindle Sleeve Holder Front Tools 5
5-Spindle Sleeve Holder Rear Tools 5
Max Drilling Capacity (Sleeve Holder) 12 mm
Max Tapping Capacity (Sleeve Holder) M10 × P1.5
2-Spindle Front Sleeve Holder Tools 2
Max Drilling Capacity (2-Spindle) 10 mm
Max Hole Depth (2-Spindle) 100 mm
Cross Milling Tools 3
Cross Milling Cartridge Type ER16
Cross Milling Positions 2
Max Drilling Capacity (Cross Milling) 10 mm
Max Tapping Capacity (Cross Milling) M8 × P1.25
Spindle Speed (Cross Milling) 8,000 RPM
Drive Motor (Cross Milling) 2.2 kW
Main Spindle Speed 10,000 RPM
Main Spindle Motor 2.2 kW (continuous) / 3.7 kW (10 min / 25% ED)
Machine Dimensions 5750 x 1200 x 1700 mm
Machine Weight 2750 kg
